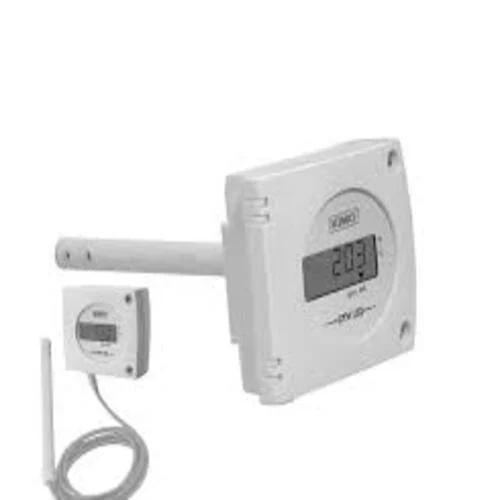

Polycarbonate Air Velocity & Temperature Transmitter
incl. GST
MODEL CTV 100
Features :
- Temperature and air velocity transmitter type CTV100.
- Ranges from 0-5 m/s to 0-30 m/s and 0 to +500 C, -20 to +800 C, -50 to +500 C, 0 to +1000 C
- 0-10 V or 4-20 mA output, active, power supply 24 Vac/Vdc (3-4 wires)
- ABS IP 65 housing, with or without display
- Alternating display pf air velocity and temperature
- Quick and easy mounting “1/4 turm” system with wall-mount plate
Applications
- Filter Status
- Duct Static Pressure
- Clean Room Pressure
- Building Pressure
- Fan and Blower Pressure
- Paint Booths
- Dust Collectors
- Glove Box Pressure
- Bubbler Systems
- Laminar Flow Hoods
- Cabinet Purging
| Measuring range | 0 to 5m/s, 0 to 10m/s, 0 to 15 m/s, 0 to 20m/s, 0 to 30 m/s |
| Units of measurements | m/s and fpm |
| Accuracy | -+3% of reading -+0,3 m/s |
| Response time | 1/e (63%) 2sc. |
| Resolution | 0,1 m/s |
| Type of fluid | air and neutral gases |
