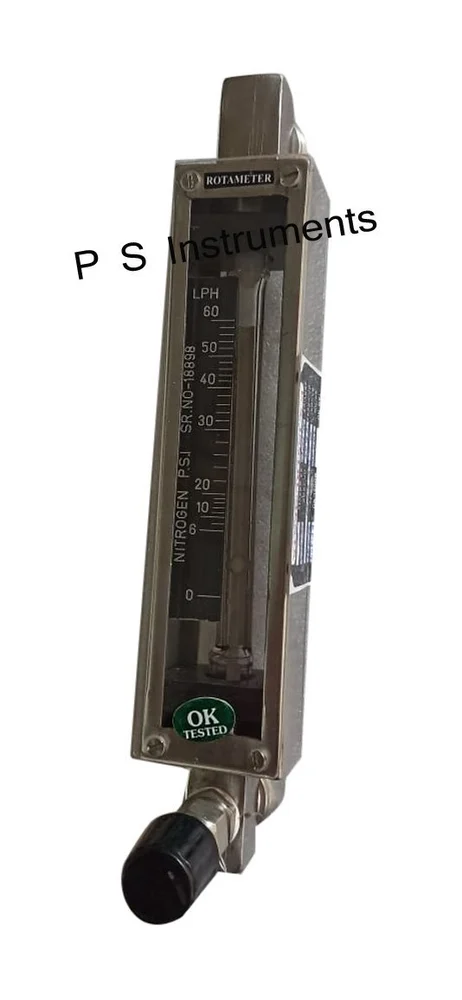

Plastic PSI-PG-101 Glass Tube Rotameter, For Industrial
| Model Name/Number | PSI-PG-101 |
| Brand | P S Instruments |
| Usage/Application | Industrial |
| Range Ability | 10:1 |
| Tube Body Construction | Glass |
| Float Material | Plastic |
| Accuracy | +2% of FSD |
| Air Flow | 300 Nm2/hr of Air |
| Range | 40,000 LPH of Water at Ambient Temperature |
| Line Size | 15 NB |
Feature
| Model Name/Number | PSI-PG-101 |
| Brand | P S Instruments |
| Usage/Application | Industrial |
| Range Ability | 10:1 |
| Tube Body Construction | Glass |
| Float Material | Plastic |
| Accuracy | +2% of FSD |
| Air Flow | 300 Nm2/hr of Air |
| Range | 40,000 LPH of Water at Ambient Temperature |
| Line Size | 15 NB |
Description
PSI-PG-101 Glass Tube Rotameter are ideal for laboratory or instrumentation applications. Mounting can be panel or by optional tripoid base. Available in complete acrylic body or stainless steel body with glass metering tube. Purge Rotameters are economical and suitable for low flow rate indication for fluids. These are available in all standard material of construction and can be offered with a flow regulating needle valve to give a constant flow irrespective of the supply or upstream pressure.
Features:
- Suitable for Gas liquid flows for a maximum temp of 95 Deg C
- Customized scale for readout in any desired unit
- Attractive appearance for panel mounting
- Wide choice of material to suit all applications
- 1/4", 1/2" threaded rear and top connections
- Transparent acrylic/ glass cover
- Optional differential pressure regulator and alarms.
- Acrylic cover
- Ranges between - 26 - 260 to 185 - 1850 NLPH of Air
- Various Materials of Constructions :- MS / SS304 / SS316 / Brass
- Connections :- 1/8”,¼”, BSP / NPT (F) Back - Back / Bottom - Top
- Clear Acrylic Cover Provides visibility From 2/3 sides
- Accuracy : +/- 2% of full scale.
- 0.6 to 160 LPH for water and 10 to 4500 NLPH at NTP for air Accuracy +/-3% of for full scale ranges between - 26 - 260 to 185 - 1850 NLPH of Air.
