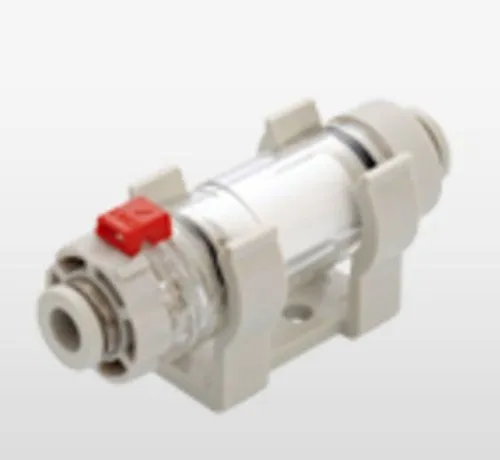

Pisco Japan Positive-Negative Pressure Union
| Type | SFU1 |
| Operating temp. range | 0~50DegC (No freezing) |
| Filter area | 4.7cm2 |
| Filtering accuracy | 10 um |
| Proof pressure | 1.5MPa |
| Max. operating pressure | 1.0MPa (at 20DegC) |
| Max. vacuum | -100kPa |
| Fluid medium | Air |
| Minimum Order Quantity | 30 Piece |
Feature
| Type | SFU1 |
| Operating temp. range | 0~50DegC (No freezing) |
| Filter area | 4.7cm2 |
| Filtering accuracy | 10 um |
| Proof pressure | 1.5MPa |
| Max. operating pressure | 1.0MPa (at 20DegC) |
| Max. vacuum | -100kPa |
| Fluid medium | Air |
| Minimum Order Quantity | 30 Piece |
Description
With the same convenience as the conventional vacuum filters (VFU series), the filter can be used in the positive pressure as well.
- Best suitable for the applications in positive pressure where filtration accuracy is not required.Use as pre-filtering application for positive pressure.
- Easy maintenanceThe element is replaced easily without using tools.
- Optional -S3 specification: "No copper alloy" and "Low level ozone resistance" are available.No copper alloy is applied for metal parts and HNBR is used for seal materials.
