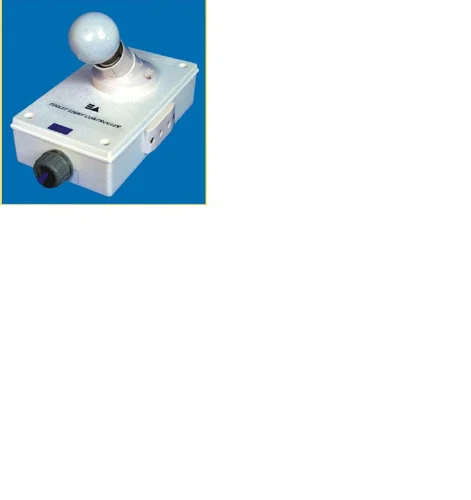

PIR Light Controller
| Minimum Order Quantity | 25 |
Feature
| Minimum Order Quantity | 25 |
Description
PIR : Light Controller
Model – PIR 300
Specifications:
Supply : 230 Volts AC
Output : 220 Volts AC
Contact Rating : 2A @ 230 VAC
Maximum Load : up to 500 Watt
Detection Range: Adjustable up to 8 mtr.
Time Delay Adj.: Adjustable up to 30 min
Day & Night : Selectable
Sensitivity Adj : Provided by potentiometer
Detection Angle : 110 degrees
Housing : ABS Housing
We offer Human Body Motion Sensor based on Passive Infra-red techniques. This unit senses presence of moving person in the specified area and operates a relay output. This sensor can be used in variety of applications for Safety, Security, Automation, Energy Saving, Convenience etc.
Sensor is normally mounted on the wall at the corner. It covers an angular area of approximately 110 degrees and has a range of up to 6 to 8 mtr. It works on 220 VAC supply and has a built in output relay and time delay adjustment. Time delay setting keeps the output relay ON for desired time after detecting presence of human body. Sensor has Day-Nigt selectable switch, which make the sensor work at nights only or during day and night. Sensor has fixing arrangement such that it can be adjusted in any required angle.
