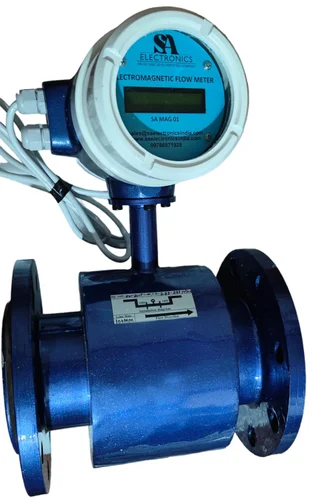

Pipeline SS And Plastic Electromagnetic Flow Meter, For ETP, Model Name/Number: Sa Mag 01
17500
incl. GST
ELECTROMAGNETIC FLOW METER
HSN CODE: 9026
MAKE : SA ELECTRONICS
MODEL : SA MAG 01
ACCURACY: ±0.5% OF READING
MEDIA: WATER APPLICATION
LINING: PTFE (TEFLON)
TYPE: FULL BORE WITH INTEGRAL MOUNTING
DISPLAY: LCD/ LED (FLOW UNIT- M3/HR, LPH, LPM, LPS)
LINE PRESSURE: MAX. 25KG/ CM2
MEDIA TEMPERATURE: 0 TO 120°C
CONDUCTIVITY: MINIMUM @0.3MICROSEMENCE
OUTPUT: 4-20MA DC (RS 485 MODBUS SPECIFY- EXTRA COST) END
CONNECTION: FLANGE ANSI # 150
BODY AND FLANGE: M.S.
FLOW TUBE: SS 304
ELECTRODE: HASTELLOY’ C
POWER SUPPLY: 230VAC, 50 HZ
PROTECTION CLASS: IP 65- ALUMINUM DIE. CAST
