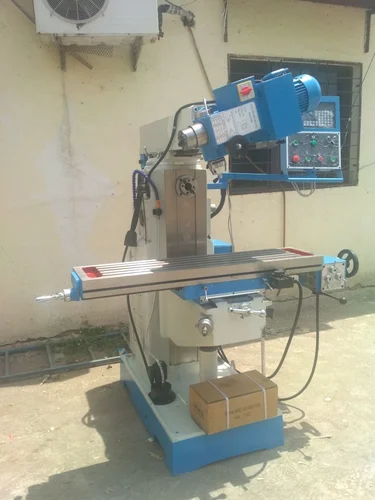

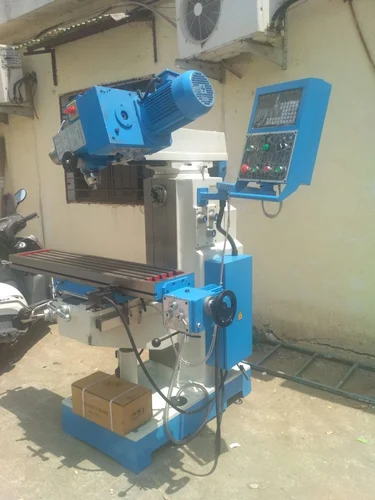

Pentagon Drilling Milling Machine With Horizontal And Vertical Milling Head Model Zx6350 in pune

Pentagon Drilling Milling Machine With Horizontal

365000 incl. GST

Features Included
1. Both Horizontal milling and vertical drilling head which can provides drilling milling both features along with boring, reaming etc
2. Geared drive for horizontal spindle which produce more power for heavy milling operations
3. Vertical head swivel and tilting features provided to give us more flexibility for machining operations

Standard Accessories Included
1. Machine lamp
2. Horizontal arbor
3. vertical draw bar
4. gear box auto feed in longitudinal travel
5. coolant pump
6. Collet set with adapter and spaner
7. key type drill chuck size 1-13 mm
8. JT6 drill chuck arbor
9. Reduction sleeve
10.Machine vice 150 mm jaw opening mechanical type
11.Operation Manual

Option Accessories (Extra)
1. M12 Type clamping kit Set 58 pcs set(Rs 3250)
2. Dividing head model BS0 with tail stock, indexing plates and 3 jaw suitable chuck(Rs 37800 )
3. H-V rotary table size 8" with/with out indexing plate(Rs 17600)
4. Key less drill chuck with suitable arbor(Rs 3460)
5. Micro boring head with suitable shank(Rs 5800)
6. DRO Two axis with suitable linear scales and fitting along with cover etc(Rs 23500)
7. Boring bar set of 12 pcs of 18 mm dia(Rs 2300)

Tech Details :
Max drilling capacity : 50 mm
End milling capacity : 25 mm
Table size : 1500x280 mm
Table travel in Z/Y/Z : 850/320/400 mm
Spindle nose for vertical head : MT4
Spindle nose for Horizontal headhead : ISO40
Spindle motor for vertical head : 1.5KW/50HZ/3Phase
Spindle motor for horizontal head : 3KW/50HZ/3Phase
Auto feed motor for horizontal head : 0.75KW/50HZ/3Phase
No of spindle speed Horizontal/Vertical : 8 steps/12 steps
Range of speed Horizontal/Vertical : 115-1750 rpm
Distance between spindle nose to table surface min/man : 100-540 mm
Vertical quill travel : 120 mm
Weight of machine : 1400 Kgs
Packing size : 1520x1330x2220 mm

Feature

Model Name/Number	PENTAGON ZX6350C
Type	Auto table feeder
Brand	PENTAGON
Model	PENTAGON ZX6350C
Material	Cast Iron
Drill Type	50 mm Drilling
Usage/Application	Drilling milling key way milling slotting reaming boring
Product Type	MNTR M1TR DRO Milling Vertical Milling Milling Machine
Drilling Diameter	40 mm
Machine Type	Automatic
Warranty	1 year
Voltage	415 V
Minimum Order Quantity	1 Piece
