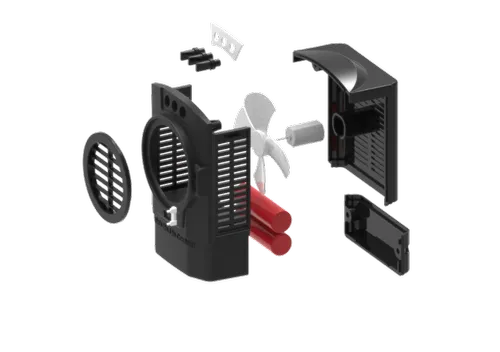

Part And Assembly Modelling

600 incl. GST

We use 3D Mechanical CAD so that your product can be ready for initial production in just a matter of days. With industrial designers that understand rapid manufacturing, it's never been easier to go from design to implementation.

Feature
Type of Service Provider Designing Firm
Type of Technology CAD / CAM
Type of Service Contract Project Based
Service Charge As per project
Technique CAD
Duration As per project
Minimum Order Quantity 1 Hour
Description

We use 3D Mechanical CAD so that your product can be ready for initial production in just a matter of days. With industrial designers that understand rapid manufacturing, it's never been easier to go from design to implementation.
