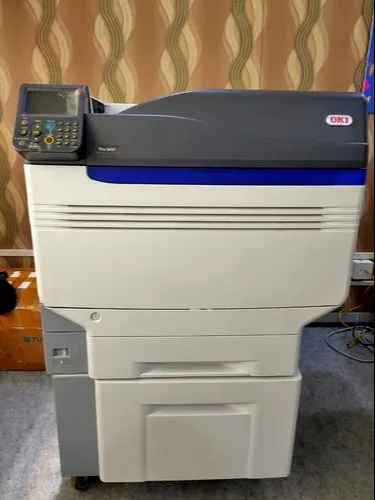

OKI Pro9431 Digital Printing Machine, Capacity: 2500 Sheets in Mumbai

1530 Series 3 Axis Wood Cutting CNC Router & Engra

call on

Size: 8* feet 4* feet - 3.5 kw (stepper) -wood carving-air cooled rs.4,50,000/-
Size: 10* feet 5* feet - 3.5 kw (stepper) -wood carving-air cooled rs.5,00,000/-
Size: 8* feet 4* feet - 5.5 kw (stepper) -wood carving-air cooled rs.5,50,000/-
Size: 10* feet 5* feet - 5.5 kw (stepper) -wood carving-air cooled rs.6,50,000/-(water bed / water cooled)
Size: 8* feet 4* feet - 3.5 kw (stepper)-stone /marble engraving rs.4,90,000/-
Size: 10* feet 5* feet - 3.5 kw (stepper)-stone/marble engraving rs.6,80,000/-
Size: 8* feet 4* feet - 5.5 kw (stepper)-stone/marble engraving rs.6,50,000/-
Size: 10* feet 5* feet - 5.5 kw (stepper) –stone/marble engraving rs.7,50,000/-Rotary rs.75,000/- extra

Imported cast steel heavy duty cnc milled gantry frame
Imported helical rack & pinion assembly
150mm*150mm*8mm thick main frame
Rigid 10mm six nos. legs
Most advanced rich-auto dsp control with remote
Stepper or servo motor & drive optional
t-slot or vacuum bed available
water or air cooled spindle
working area : 1300*2500mm , 1500*3000mm
z working area : 200mm
Traveling accuracy : +/- 0.05mm. repositioning accuracy +/- 0.02mm
x, y axis : square guide rail. z axis : ball screw
max. rapid travel rate : 15000 mm/min
max. working speed : 12000mm/min
Spindle speed : 0-24000 rpm
Command mode : g code
Ac 220v/1 ph for 3kw, ac 380v/3ph for 5kw & more.

...

Automatic Wastewater Treatment Equipment

Waste Water Treatment Equipment is mainly composed of a thick directly driven, shafted steel spiral, which rotates inside the cylindrical compacting zone where screenings to be compacted are conveyed.
The compactor is equipped with a washing hopper complete with an impeller, a ball valve at the water inlet and a solenoid valve.Screenings fall into the washing hopper that fills up with water.
The impeller moves screenings together with the water to separate solids from organic particles. After washing, the hopper empties and a rotating shafted spiral conveys the solids to the compacting where screenings are dehydrated and conveyed to the outlet.
The liquid produced by compaction and washing is reintroduced into the purification process through the screening channel.

...

Hydraulic Oil Filtration Services

We Provide Oil filtration services for Hydraulic oil. Those who have less quantity of oil in their machine so are not able to purchase machine. for them its a best solution to get oil clean using Mauli techsol ELC machine.
Additional Information

Delivery Time

As per oil quantity

...

Mild Steel Hydraulic Plate Bending Machine

Description: Pyramid type three roll plate bending and rolling machine

Hydro-Mechanical operation with Fixed Bottom Rolls and Top Roll rotating by hydraulic system
Electric Motor Brake and Independent Control Panel allows user to stop the machine at any point, thus allowing any shape in rolling
Double gear box design (worm and spur reduction), prevents fatigue in motion and overload of motor even if the machine is bending at over capacity
Housing is made from M.S. Plate of suitable strength and mounted on heavy base frame; Rolls are made from forged steel and perfectly machined for accurate result.

Specifications: (In mm unless specified otherwise)

Accuracy: As per IS Standard 14878

Applications:

Fabrication of Pipes, Tanks, Pressure Vessels, Shipping Industry and Chimneys
Cylindrical, Right Angle and Conical Bending

Accessories:

Pre-bending, Conical Bending, Digital Readout, PLC Controller

Additional Information

Model	GPB 12:12	GPB 15:16	GPB 20:20	GPB 30:20	GPB 25:25	GPB 30:30
Capacity in M.S.	1250 x 12	1500 x 16	2000 x 20	3000 x 20	2500 x 25	3000 x 30
Roll Diameter (Top/Bottom)	185/140	220/170	260/220	290/250	310/260	360/330
Main Drive	5.5 kW	7.5 kW	11 kW	18 kW	22 kW	30 kW
End Dropper	0.75 kW	1.1 kW	1.5 kW	2.2 kW	2.2 kW	2.2 kW

Delivery Time

3 to 4 months

...

Item Code	OKI
Delivery Time	15-20 WORKING DAYS
Production Capacity	2500 SHEETS PER DAY
Packaging Details	1 BOX

Model/Type	OKI Pro9431 Digital Printer
Printing Material	Digital Printing Material
Capacity	2500 Sheets
Brand/Make	OKI
Body Material	Plastic AND Steel
Connectivity	LAN, USB
Driven Type	MAC & WINDOWS Upto 10
Max Print Area	13X52 inch
Operating Environment	Cool
Power Requirement	16A
Print Technology	Digital
Resolution	1200X1200DPI
Speed	45PPM A4
Thickness	400GSM
Voltage	3kW
Minimum Order Quantity	01

Item Code	OKI
Delivery Time	15-20 WORKING DAYS
Production Capacity	2500 SHEETS PER DAY
Packaging Details	1 BOX
