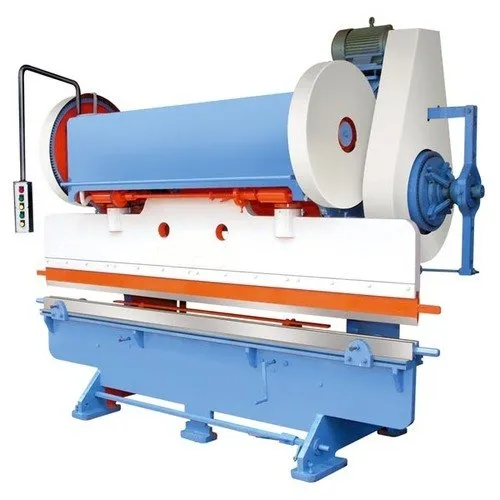

Non-CNC Mechanical Press Brake, For Industrial, Cu

200000 incl. GST

Model Ton Bending Capacity in M.S. Clear Distance  Stroke  Stroke Of Ram  Ram  Shut Height  Depth Of Throat Main Motor Ram Adj. Motor Overall Dimension In M.M
(Length x Thickness) Between Housing (Per Min.) (M.M) (M.M) Ram Stroke Down  (M.M) (H.P/K.W) (H.P/K.W) Length Width  Height
RMT - 1 20 1525 x 1.6 1000 35 50 40 175 200 3/2.2 0.5/0.37 2000 1125 2300
RMT - 2 25 2000 x 1.6 1220 35 50 40 200 200 5/3.7 0.5/0.37 2300 1200 2500
RMT - 3 40 2500 x 2 1550 35 60 50 215 250 7.5/5.6 1/0.75 2800 1500 2650
RMT - 4 65 3125 x 2.5 1900 30 76 50 275 300 10/7.6 1.5/1.1 3400 1575 2750
RMT - 5 65 2000 x 4 1370 30 76 63 275 300 10/7.6 1.5/1.1 2400 1575 2750
RMT - 6 80 2500 x 4 1550 25 76 63 300 300 12.5/9.7 2/1.5 2900 1650 3025
RMT-7 100 3125 x 4 1900 25 76 80 300 300 15/11.2 2/1.5 3450 1875 3525
RMT - 8 120 2500 x 6 1700 25 76 80 300 300 20/15 2/1.5 2900 1900 3550
RMT - 9 150 2500 x 8 1700 20 80 100 300 300 25/18.7 2/1.5 3400 1900 3550
RMT - 10 150 3125 x 6 1900 20 80 100 300 300 25/18.7 2/1.5 3400 1950 3650

Feature
Usage/Application Industrial
Control Type Non-CNC
Cutting Load >150 ton
Minimum Order Quantity 1 Unit
Description
Model Ton Bending Capacity in M.S. Clear Distance  Stroke  Stroke Of Ram  Ram  Shut Height  Depth Of Throat Main Motor Ram Adj. Motor Overall Dimension In M.M
(Length x Thickness) Between Housing (Per Min.) (M.M) (M.M) Ram Stroke Down  (M.M) (H.P/K.W) (H.P/K.W) Length Width  Height
RMT - 1 20 1525 x 1.6 1000 35 50 40 175 200 3/2.2 0.5/0.37 2000 1125 2300
RMT - 2 25 2000 x 1.6 1220 35 50 40 200 200 5/3.7 0.5/0.37 2300 1200 2500
RMT - 3 40 2500 x 2 1550 35 60 50 215 250 7.5/5.6 1/0.75 2800 1500 2650
RMT - 4 65 3125 x 2.5 1900 30 76 50 275 300 10/7.6 1.5/1.1 3400 1575 2750
RMT - 5 65 2000 x 4 1370 30 76 63 275 300 10/7.6 1.5/1.1 2400 1575 2750
RMT - 6 80 2500 x 4 1550 25 76 63 300 300 12.5/9.7 2/1.5 2900 1650 3025
RMT-7 100 3125 x 4 1900 25 76 80 300 300 15/11.2 2/1.5 3450 1875 3525
RMT - 8 120 2500 x 6 1700 25 76 80 300 300 20/15 2/1.5 2900 1900 3550
RMT - 9 150 2500 x 8 1700 20 80 100 300 300 25/18.7 2/1.5 3400 1900 3550
RMT - 10 150 3125 x 6 1900 20 80 100 300 300 25/18.7 2/1.5 3400 1950 3650
