Multi Rake Screen

• Applications- STP headwork: protect downstream equipment, Pumping stations; flood control;  Water  intake for remove large debris; Ideal for both municipal and industrial use.
•
• Benefits: Above water operation, No submerged moving parts; Flexible & customized design, Heavy duty, wide range, Positive screening discharge

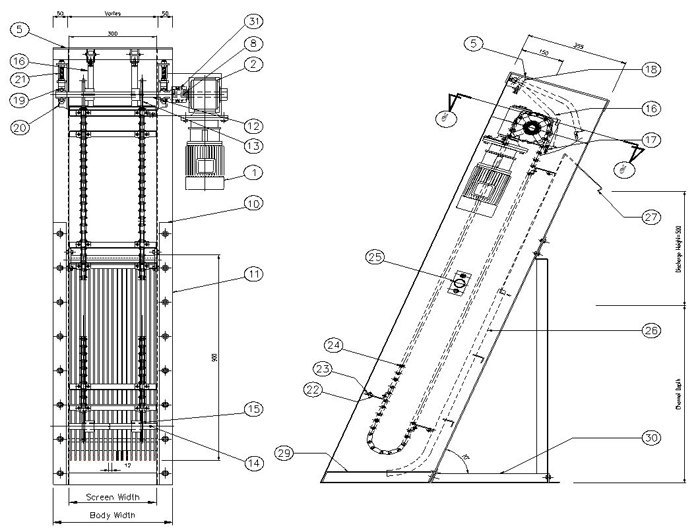

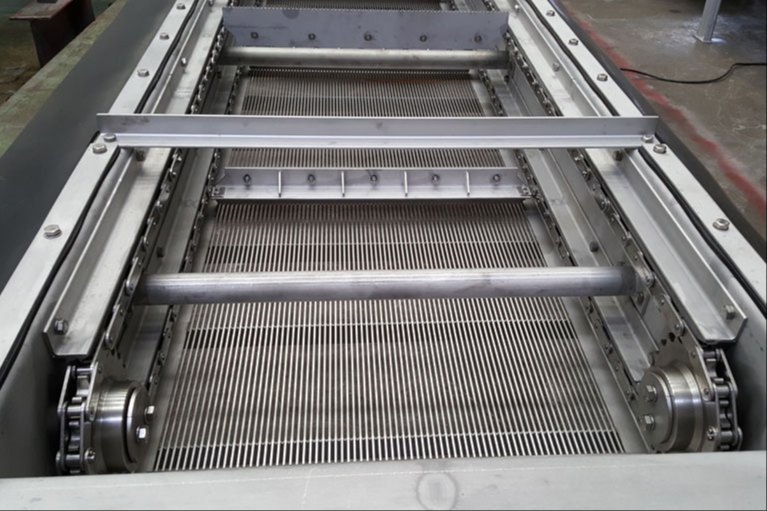

• Mechanical screen with rakes of bar vertical way and linear in motion. They are installed in the wastewater channel with angle of 70 - 75°. The equipment consists of screen, motor- reducer, base frame, chain mechanism, rake and rake  cleaning system. The motion is conveyed to the rakes  with  the help of the chain mechanism. Number of the rakes depends on to the depth of channel and in the consequence  of the length of the screen.
