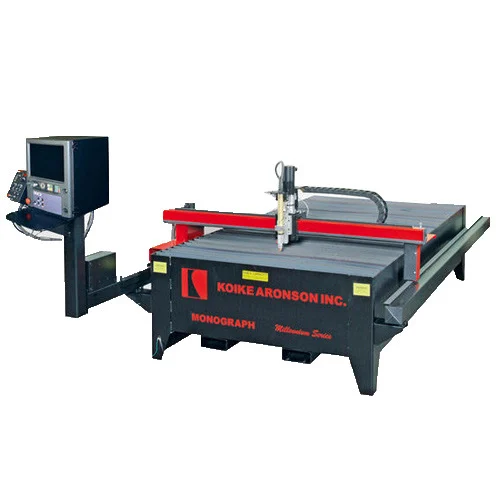

Monograph CNC Controlled Cutting Machine
| Positioning speed | 36000 mm/min |
| Type of drive | Precision Rack and Pinion |
| Cutting speed | Min. 50 Max. 6000 mm/min |
| Table working height | 770 mm |
| Cutting length | 3000 mm |
| Cutting width | 1500 mm |
- Strong and stiff machine construction
- Choice of plasma units
- 'Plug and Cut' Design - installed in almost no time
- Almost maintenance free
- Easy to use CNC controller with 15" touchscreen
- Direct DXF import
- Automatic height control (depends on machine configuration)
- Pneumatic floating head for thin sheet metal (depends on the machine configuration)
Feature
| Positioning speed | 36000 mm/min |
| Type of drive | Precision Rack and Pinion |
| Cutting speed | Min. 50 Max. 6000 mm/min |
| Table working height | 770 mm |
| Cutting length | 3000 mm |
| Cutting width | 1500 mm |
- Strong and stiff machine construction
- Choice of plasma units
- 'Plug and Cut' Design - installed in almost no time
- Almost maintenance free
- Easy to use CNC controller with 15" touchscreen
- Direct DXF import
- Automatic height control (depends on machine configuration)
- Pneumatic floating head for thin sheet metal (depends on the machine configuration)
Description
The Monograph CNC Controlled Cutting Machineis a robust high-quality CNC controlled cutting machine, suitable for economical and good quality cutting of metals up to 20mm (depending on machine configuration).
The MONOGRAPH is a 'plug and cut' machine, rail and cutting table are one integral construction. This compact design enhances the stiffness of machine and floor space efficiency. The design of the table with rear exhaust allows maximum fume extraction. Positioning accuracy is facilitated through the use of precision AC Servo Motors and Planetary Gears attached directly to the Rack and Pinion. This design is extremely reliable and offers a high positioning accuracy, with backlash-free gears and traverse speeds of up to 36.000 mm/min. The combination of the latest CNC technology, Hypertherm's Powermax plasma system, robust frame construction and ease of use do create an economical cutting machine for many applications.
