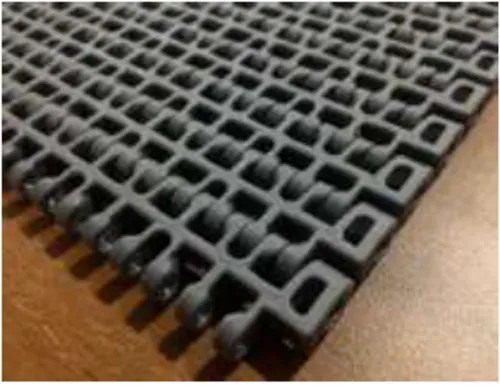

MODULAR PLASTIC BELT, Pitch: 16mm & Opening-32%, Pin Diameter: 5MM in pune

Paper Roll Cutting Machine, Capacity: 2000 Kg Per Day

Industrial Welding Robot

Our prestigious organization offers a gamut range of Helium Leak Testing Machine, Welding Automation, Test Equipment, Helium Leak Detector, Helium Gas Recovery Machine, Automatic Checking Gauges, Gas Mixer to our valuable clients.

...

Mild Steel Manual Agarbatti machine, Production Ca

Manual agarbatti machineZero maintenanceLow cost high profit business

...

Mild Steel Floor Deck Roll Forming Machine

Our Floor Deck Roll Forming Machine are offered As per your requirement. our company has achieve great success in providing customer Services from all over the world with exilant machines featuring high technical content, optimized composition, reliable performance and easy operation. We are committed to providing quility machines for all customers with dedicated after-sales services.

Other Details:

D coiler 5 ton cap.
Entry Gate with
Roll Forming Line with 18 station , 10 H.P. electrical.
Control Panel semi auto
Cutting Unit (Hydro.)

Technical Specifications:

Maximum sheet width that can be formed : 1450 mm
Maximum sheet thickness in CRCA Strips that can be formed : 0.5 mm
Horizontal distance between shafts : 500mm
Number of forming stations : 18 nos.
Total HP for Line : 15
Speed of the machine : 10 -14 mt / minute
Size of machine : 9500 x 1700 x 1100 mm

Mandrel Uncoiler:

Coil weight : 5 MT Max
Coil width : 1450 MM
Coil bore : 450 MM min, 510 MM max dia.
Mandrel movement : Manually adjusted
Back Tension : Manually adjusted

Entry Gate:

Entry gate will be provided for movement of sheet to roll former.

Main Base:

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station):

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts:

The roll shafts dia. 70mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive:

The drive to the roll former will be by means of a chain. The main drive will be provided by means of 10 HP motor

Tooling:

One set of Tooling with EN grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.

Cutting Unit (Hydro):

Hydraulically operated power pack along with cutting die with 3 HP electrical.

...

MODULAR PLASTIC BELT, Pitch: 16mm & Opening-32%, P

Feature

Related Products

Paper Roll Cutting Machine, Capacity: 2000 Kg Per Day

Industrial Welding Robot

Mild Steel Manual Agarbatti machine, Production Ca

Mild Steel Floor Deck Roll Forming Machine

Overall Rating

Rating Distribution

Submit Your Review

Pitch	16mm & Opening-32%
Chain Material	Plastic
Pin Diameter	5MM
