Mini Vertical Milling Slide with Base Plate- Direc

791799 incl. GST

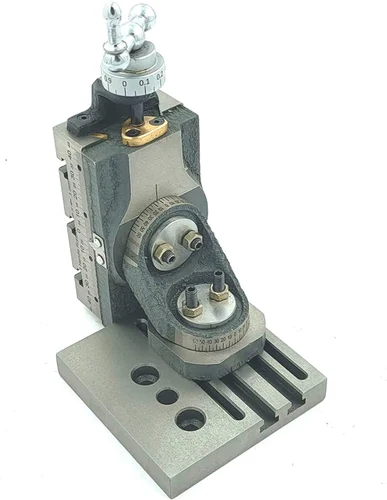

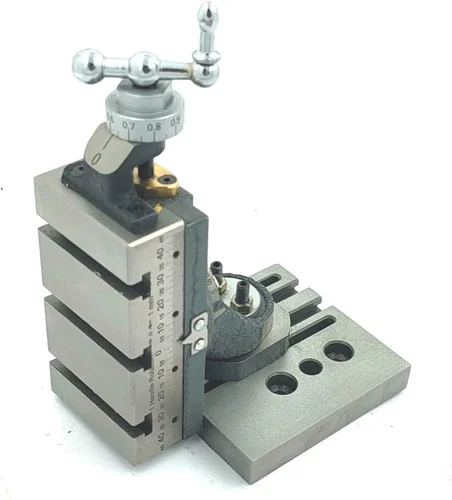

  • Assorts' exclusively designed mini lathe's milling vertical slide, 90 x 50 mm in fixed type without clamping jaws option.
  • Supplied with a tool steel base plate to which it can be mounted through fixing t nut and bolts through the base. The base plate is drilled in a manner that it can be directly mounted on the cross slide rest of the 7 x 14 Mini lathe
  • The mini slide 's body & working bed are made of graded caste iron.are made of tool steel. All working surfaces are precisely ground. The body is painted & handle is chrome plated, for a rust free life.
  • The bed has a reference scale , laser marked with a pointer for slide's movement reference of the slide. The vertical travel movement of the slide is 40 mm and are best suited for Bench Lathes upto 150 mm Swing

Feature
Material CASTING TOOL
Machine Type Mini Vertical Milling Slide
Usage/Application DOES NOT APPLY
Product Type MILLING MACHINE
Automation Grade Manual
Hardness UNKNOWN
Quantity Per Pack 1
Size 90 x 50 mm
Surface Finishing UNKNOWN
Country of Origin Made in India
Description
  • Assorts' exclusively designed mini lathe's milling vertical slide, 90 x 50 mm in fixed type without clamping jaws option.
  • Supplied with a tool steel base plate to which it can be mounted through fixing t nut and bolts through the base. The base plate is drilled in a manner that it can be directly mounted on the cross slide rest of the 7 x 14 Mini lathe
  • The mini slide 's body & working bed are made of graded caste iron.are made of tool steel. All working surfaces are precisely ground. The body is painted & handle is chrome plated, for a rust free life.
  • The bed has a reference scale , laser marked with a pointer for slide's movement reference of the slide. The vertical travel movement of the slide is 40 mm and are best suited for Bench Lathes upto 150 mm Swing
