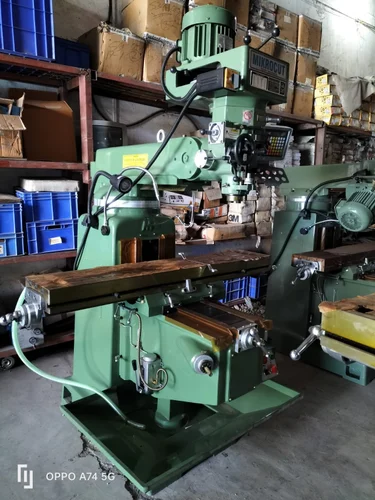

Mild Steel M1tr Milling Machine
| Material | Mild Steel |
| Product Type | Milling machine |
| Automation Grade | Semi-Automatic |
| Table Size | 10 inch x 54 inch and 12 inch x 50 inch |
| Spindle Taper | R8/ ISO30/ ISO40 |
| Is It Customized | Non Customized |
| I Deal In | New and Second Hand |
| Minimum Order Quantity | 1 Piece |
Feature
| Material | Mild Steel |
| Product Type | Milling machine |
| Automation Grade | Semi-Automatic |
| Table Size | 10 inch x 54 inch and 12 inch x 50 inch |
| Spindle Taper | R8/ ISO30/ ISO40 |
| Is It Customized | Non Customized |
| I Deal In | New and Second Hand |
| Minimum Order Quantity | 1 Piece |
Description
MODEL 2000S Table size(mm) 254x1270 (10”x50”) 254x1370 (10”x54”) 305x1370 (12”x54”) Longitudinal Travel (mm) 830 900 900 Cross Travel (mm) 400 400 400 Vertical Travel(mm) 3 numbers 406 406 406 Table T-slots(mm) 3 numbers 16x3x63 16x3x80 16x3x80 Spindle Motor (H.P.) 3 3 3 Spindle Speed (RPM) 16 Steps 50-4260 16 Steps 50-4260 16 Steps 50-4260 Spindle Taper R8 R8/ISO40 R8/ISO 30/ISO40 Spindle Nose to table Top (mm.) 40-446 40-446 40-446 Spindle Centre to Column Surface (mm). 200-680 200-680 200-680 Quill Travel (mm) 127 127 127 Auto Quill Feeds (per revolution)(mm) 0.40/0.08/0.15 0.40/0.08/0.15 0.40/0.08/0.15 Head Swivel (RL)90Ëš/(FB) 45Ëš (RL)90Ëš/(FB) 45Ëš (RL)90Ëš/(FB) 45Ëš Ram Travel (mm) 480 480 480 Net Weight (kgs.) 1400 1450 1450 Y – Axis Dovetail guide way Dovetail Guide way Dovetail Guide way Z – Axis 55dg. Swallow tail Guideway 55dg. Swallow tail Guideway 55dg. Swallow tail Guideway
