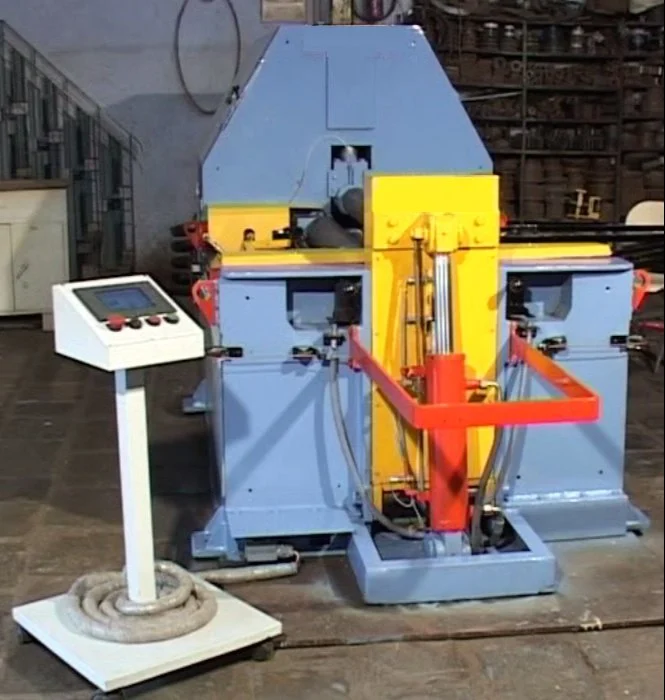

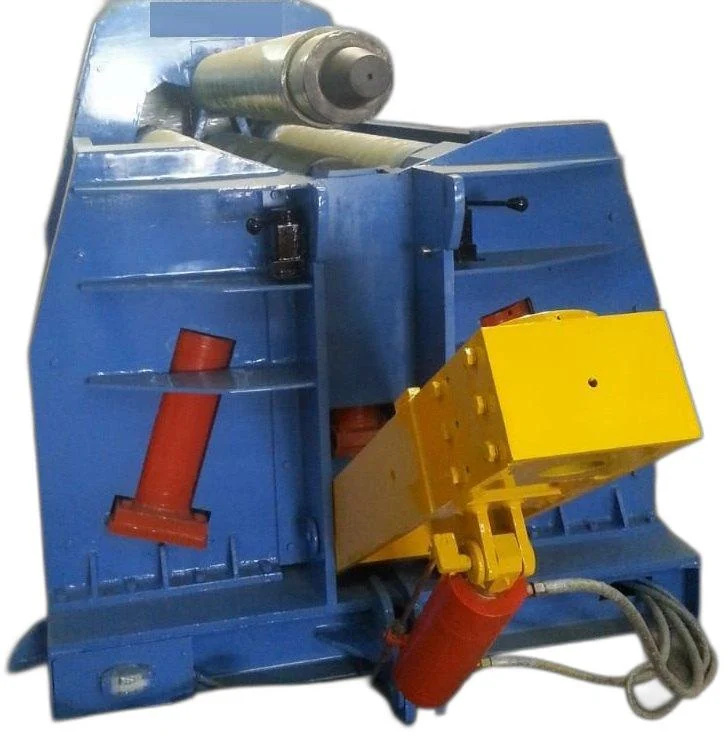

Mild Steel Hydraulic Plate Bending Machine
| Usage/Application | Rolling of flat steel sheets and plates into cylindrical and conical rolls |
| Size | Plate Length 1000mm to 4000mm |
| Material | Mild Steel |
| Capacity | 6mm to 30mm in steel of UTS 42 Kg/cm2 |
| Product Type | Three Roll Plate Rolling & Bending Machine |
| Power Source | Hydraulic Drive with Gear Box and Induction Motor |
| Sheet Thickness | 6mm to 30mm in steel of UTS 42 Kg/cm2 |
| Automation Grade | Automatic |
| Power | Hydraulic |
| Warranty | 1 Year |
| I Deal In | New Only |
| Flat End on Each Side | 150 to 200 mm |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Feature
| Usage/Application | Rolling of flat steel sheets and plates into cylindrical and conical rolls |
| Size | Plate Length 1000mm to 4000mm |
| Material | Mild Steel |
| Capacity | 6mm to 30mm in steel of UTS 42 Kg/cm2 |
| Product Type | Three Roll Plate Rolling & Bending Machine |
| Power Source | Hydraulic Drive with Gear Box and Induction Motor |
| Sheet Thickness | 6mm to 30mm in steel of UTS 42 Kg/cm2 |
| Automation Grade | Automatic |
| Power | Hydraulic |
| Warranty | 1 Year |
| I Deal In | New Only |
| Flat End on Each Side | 150 to 200 mm |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Description
Description: Pyramid type three roll plate bending and rolling machine
- Hydro-Mechanical operation with Fixed Bottom Rolls and Top Roll rotating by hydraulic system
- Electric Motor Brake and Independent Control Panel allows user to stop the machine at any point, thus allowing any shape in rolling
- Double gear box design (worm and spur reduction), prevents fatigue in motion and overload of motor even if the machine is bending at over capacity
- Housing is made from M.S. Plate of suitable strength and mounted on heavy base frame; Rolls are made from forged steel and perfectly machined for accurate result.
Specifications: (In mm unless specified otherwise)
Accuracy: As per IS Standard 14878
Applications:
- Fabrication of Pipes, Tanks, Pressure Vessels, Shipping Industry and Chimneys
- Cylindrical, Right Angle and Conical Bending
Accessories:
Pre-bending, Conical Bending, Digital Readout, PLC Controller
Additional Information
| Model | GPB 12:12 | GPB 15:16 | GPB 20:20 | GPB 30:20 | GPB 25:25 | GPB 30:30 |
| Capacity in M.S. | 1250 x 12 | 1500 x 16 | 2000 x 20 | 3000 x 20 | 2500 x 25 | 3000 x 30 |
| Roll Diameter (Top/Bottom) | 185/140 | 220/170 | 260/220 | 290/250 | 310/260 | 360/330 |
| Main Drive | 5.5 kW | 7.5 kW | 11 kW | 18 kW | 22 kW | 30 kW |
| End Dropper | 0.75 kW | 1.1 kW | 1.5 kW | 2.2 kW | 2.2 kW | 2.2 kW |
| Delivery Time | 3 to 4 months |
