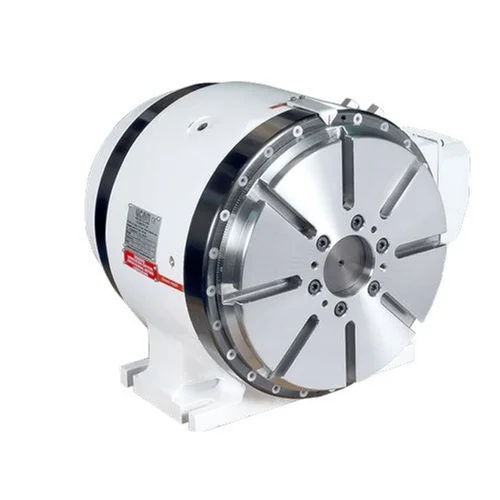

Mild Steel CNC Rotary Tables 5 Axis
| Material | Mild Steel |
| Brand/Make | Ucam |
| Load Capacity | Horizontal- 250 kg |
| Frequency | 50 Hz |
| Voltage | 220 V |
| T Slot Size( Ref Slots- H7) | 12 x 2 |
| Table Center Height | 135 mm |
| Series | URX |
| Center Bore Dia | 60 mm |
Feature
| Material | Mild Steel |
| Brand/Make | Ucam |
| Load Capacity | Horizontal- 250 kg |
| Frequency | 50 Hz |
| Voltage | 220 V |
| T Slot Size( Ref Slots- H7) | 12 x 2 |
| Table Center Height | 135 mm |
| Series | URX |
| Center Bore Dia | 60 mm |
Description
The new CNC Rotary Table from UCAM has got higher speed and higher clamping torque. Thus making it suitable for machining complex components like turbine blades, when used in synchronous with machine axes.The new CNC rotary table URX Series has got better aesthetics. Further provides higher productivity and are available with Right Hand, Left Hand or Rear Motor mounting arrangement.
UCAM offers wide range of 4th Axis Rotary Table. Depending on the application we can offer precision Standard CNC Rotary Tables, Tilting Table, Large Bore Rotary Tables, Multi-Spindle Rotary Table, Large Size Rotary Table etc. These Rotary Tables can be integrated into 3 Axis machines to form an integrated 4th Axis solution for interpolation as well as positioning applications. The demand for higher speed and higher clamping torque has made us to bring out the latest version of CNC Rotary Tablee, which is beneficial for the customers in increasing productivity of machining operations.
Pneumatic / Hydraulic Clamping
Pre Loaded Axial Radial Roller Bearing
Gear Mechanism - Motor to Worm Shaft
Dual Lead Worm Gear set
Vertical mounting
Option available with Vertical /Horizontal mounting
High Clamping Torque
UCAM standard rotary tables are used in various industries as per listed below for machining complex components. The new and improved URX series rotary tables helps in improving productivity.
Aerospace
Agricuture and Heavy Vehicle
Automotive
Medical and Orthopedic Implant
Mining
Power Generation
