| Max Capacity (Dia X Thickness) |
75 MM X 5 MM |
| Bending Material |
Mild Steel |
| Min Capacity (Diameter) |
12 mm |
| Operation Mode |
Semi-Automatic, Semi-Automatic, Manual |
| Power |
ELECTRO HYDRAULIC |
| Wall Thickness of Pipe |
2.75 mm. - 4.5 mm, 2.75 mm. - 5 mm, 2.75 mm. - 6 mm |
| Capacity |
3" |
Feature
| Max Capacity (Dia X Thickness) |
75 MM X 5 MM |
| Bending Material |
Mild Steel |
| Min Capacity (Diameter) |
12 mm |
| Operation Mode |
Semi-Automatic, Semi-Automatic, Manual |
| Power |
ELECTRO HYDRAULIC |
| Wall Thickness of Pipe |
2.75 mm. - 4.5 mm, 2.75 mm. - 5 mm, 2.75 mm. - 6 mm |
| Capacity |
3" |
Description

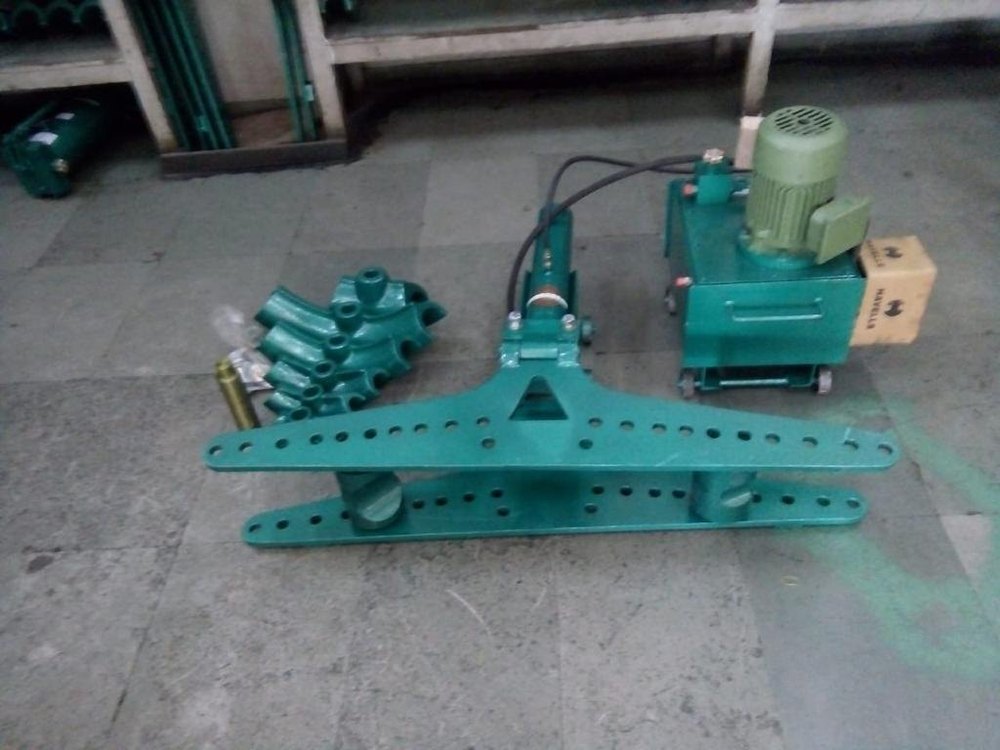

We are offering Hydraulic Hand Pipe Bending Machine to our clients.
Details:
| Capacity |
9 Ton. |
19 Ton. |
21 Ton. |
| Maximum Stroke |
250 mm. |
320 mm. |
370 mm. |
| Crimp Range (mm) |
21.3-60 mm. |
21.3-88.5 mm. |
21.3- 108 mm. |
| Bending Formers (inch) |
½, ¾, 1, 1 ¼, 1 ½, 2 |
½, ¾, 1, 1 ¼, 1 ½, 2, 2 ½, 3 |
½, ¾, 1, 1 ¼, 1 ½, 2, 2 ½, 3, 4 |
| Wall Thickness of Pipe |
2.75 mm. - 4.5 mm. |
2.75 mm. - 5 mm. |
2.75 mm. - 6 mm. |
| Volume (cm) |
73 x 32 x 20 |
93 x 40 x 21 |
118 x 46 x 23 |
| Weight (approx) |
53 kgs. |
117 kgs. |
200 kgs. |
|
Bombay Tools Center Bombay Pvt Ltd
