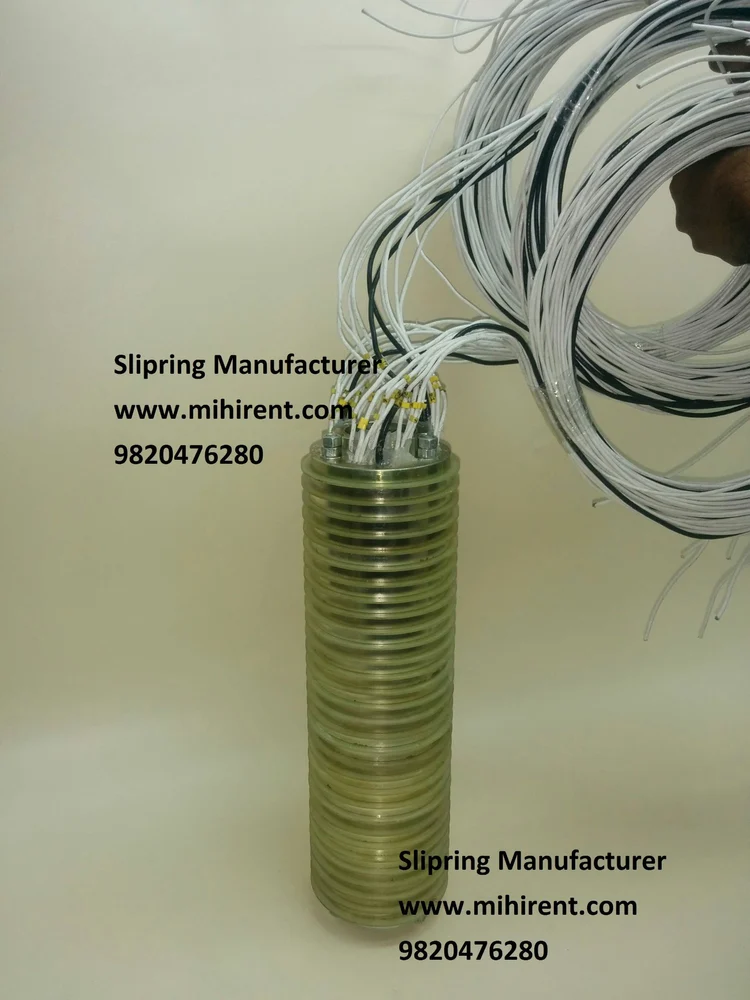

mihir 8 slip ring connector
| Size | 25 mm |
| Usage/Application | slip rig |
| Brand | mihir |
| Number Of Phase | 8 |
| Circuit Configurations | 8 |
| Storage Temperature | 20 |
| Minimum Order Quantity | 1 |
Feature
| Size | 25 mm |
| Usage/Application | slip rig |
| Brand | mihir |
| Number Of Phase | 8 |
| Circuit Configurations | 8 |
| Storage Temperature | 20 |
| Minimum Order Quantity | 1 |
Description
Slip rings are components commonly found in some types of electric motors generators and other rotating machinery They serve as a means to transmit electrical signals or power between a stationary part and a rotating part without the need for continuous physical connection as is the case with carbon brushes and commutators in brushed motors Here s a description of slip rings and their role in electric motors Slip Rings Construction A slip ring assembly typically consists of a stationary part called the stator and a rotating part called the rotor The stator is fixed to the motor casing or frame while the rotor is attached to the rotating shaft of the motor The rotor usually consists of multiple conductive rings that are insulated from each other Function Slip rings are used to transmit electrical signals power or both from a stationary source to a rotating component This is particularly useful when continuous rotation is required without the limitations of fixed wiring The slip rings provide a rotating electrical connection allowing the transmission of data control signals or electrical power between the stationary and rotating parts Applications Slip rings are commonly found in various applications such as Wind turbines They re used to transfer power from the generator in the nacelle to the grid through the rotating blades Radar systems They allow for continuous rotation of radar antennas while maintaining electrical connections for data transmission Industrial machinery They re used in machines that require rotation such as cranes winding machines and rotary indexing tables Broadcast equipment Slip rings are used in cameras and other equipment that need to rotate without interrupting video signals Brushes Slip rings often work in conjunction with brushes which are spring loaded conductive elements that make continuous contact with the rotating rings These brushes are responsible for transferring the electrical signals or power between the stationary and rotating parts Advantages and Disadvantages Slip rings offer advantages such as continuous rotation without tangling wires but they can be more complex to design and maintain compared to systems using carbon brushes and commutators Additionally slip rings might introduce some resistance and wear over time due to the sliding contact between the brushes and the rings In summary slip rings provide a method for transmitting electrical signals and power between stationary and rotating components in electric motors and other rotating machinery They offer a way to achieve continuous rotation without the limitations and wear associated with physical contacts like carbon brushes and commutators
