Methane Gas Detector

Atex Marking: Ex II 2G Ex db IIC T6 Gb, I M2 Ex db I mbATEX/IECEX and SIL2 certified, EN60079-29-1 Performance Approval

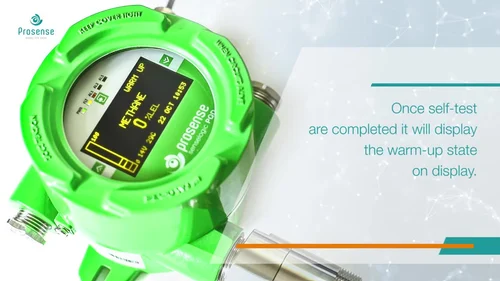

• wide and bright OLED display, detector status, measurement and environmental conditions can be seen easily from different angles
• Alarm levels and related parameters can be adjustable through display
• Analog output can be simulated for test purposes even if there is no target gas in the environment
• Reminds the user when calibration is due to ensure that sensors remain operational and accurate at all times
• Relay contacts can be tested easily via software without opening the housing in hazardous areas
• The status of the detector can be checked periodically with the bump test.
• Storages alarm and fault events up to 250 logs in order to quickly understand history of device and environment.
• Gas concentration trends for last 8 hours can be monitored on-screen as it is recording the measurement data.
• Calibration can be done by a single operator quickly without opening the lid in hazardous areas.
• PQD allows sensor replacement with pre-calibrated sensor head to provide easy maintenance.
• PQ gas detectors offer remote control option up to 15 meters for specific applications that requiers sensor and transmitter needs to located separately.
