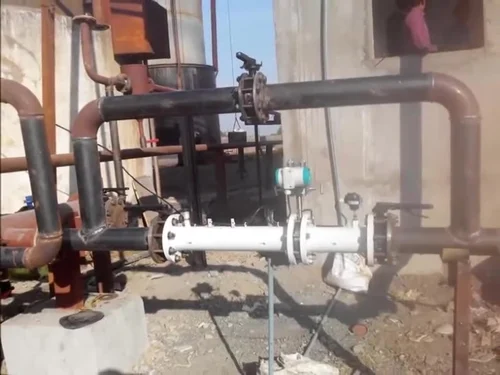

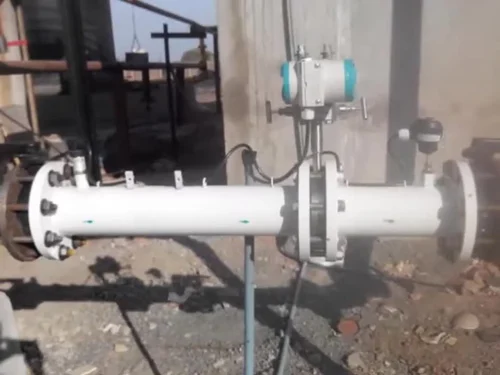

Mega SROAT Magnetic Flow Meter
| Brand | manas microsystems |
| Model | MS1010 |
| Diameter | DN400 |
| Display | Digital |
| Liner Material | Hard Ebonite rubber |
| Flanges Material | CS |
| Coil Housing Material | CS (Polyurethene Painted) |
| Body Material | CS |
| Power Supply to Field Coils | Pulsed DC |
| Ingress Protection | IP-68 |
| High accuracy of measurement | 0.5%. of Reading. |
| Primary Flow Sensor | Mega Sroat |
| Media Pressure | PN10 |
| Media Temperature | 0-80 deg C max |
| Operating Ambient Temperature | 0-60 deg C |
| Pipe Material | SS304 (non magnetic) |
Feature
| Brand | manas microsystems |
| Model | MS1010 |
| Diameter | DN400 |
| Display | Digital |
| Liner Material | Hard Ebonite rubber |
| Flanges Material | CS |
| Coil Housing Material | CS (Polyurethene Painted) |
| Body Material | CS |
| Power Supply to Field Coils | Pulsed DC |
| Ingress Protection | IP-68 |
| High accuracy of measurement | 0.5%. of Reading. |
| Primary Flow Sensor | Mega Sroat |
| Media Pressure | PN10 |
| Media Temperature | 0-80 deg C max |
| Operating Ambient Temperature | 0-60 deg C |
| Pipe Material | SS304 (non magnetic) |
Description
Series MEGA SROAT is offering large sized electromagnetic flow meters introduced by manas. The sizing ranges from 400mm diameter to 1600mm diameter. These flow meters are very accurate(Typically 0.5% of actual flowrate).
In this case the conductor is flowing media. The equation is as below:
E= B.V.D
Where
- E = Induced voltage [proportional to velocity]
- B =Magnetic flux density
- V =Mean velocity of the media
- D = Diameter of flow-sensor (distance between the sensing electrodes)
Principle Advantages:
- Robust, rugged, welded steel/stainless steel construction withstanding to IP68.
- Very much suitable for submerged or buried application.
- No Pressure Drop across the sensor, being full bore construction.
- Measurement independent of un-dissolved solids.
- Long lasting Ebonite rubber lining gives long life of sensor.
- End connection flanges as per customer's Requirements.
- Much better accuracy compared to other types of meters in its class.
