Mechcon Vacuum Centralized Dust Collector, 380/440
Product Specification
| Usage/Application | Dust Collection System |
| Type | Vacuum |
| Brand | Mechcon |
| Material | Stainless Steel |
| Automatic Grade | Automatic |
| Power Source | Electrical |
| Voltage | 380/440 V |
| Filter area | 25.7- 458 m2 |
| Design | Customised |
| Dust Removal Efficiency | 99.9% |
| Air volume | 1542 - 33000 m3 / h |
| Weight | 8000 kgs |
| Condition | New |
| Compressed Air | 4-6 kgs |
Feature
Product Specification
| Usage/Application | Dust Collection System |
| Type | Vacuum |
| Brand | Mechcon |
| Material | Stainless Steel |
| Automatic Grade | Automatic |
| Power Source | Electrical |
| Voltage | 380/440 V |
| Filter area | 25.7- 458 m2 |
| Design | Customised |
| Dust Removal Efficiency | 99.9% |
| Air volume | 1542 - 33000 m3 / h |
| Weight | 8000 kgs |
| Condition | New |
| Compressed Air | 4-6 kgs |
Description
Product Description

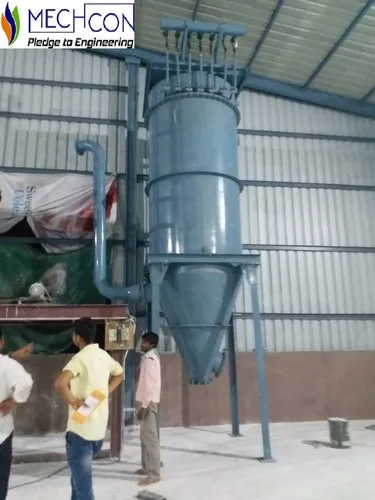

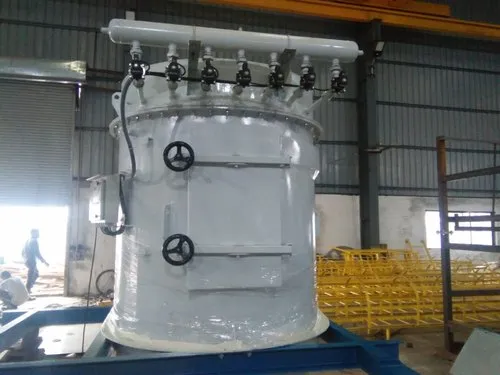

Mechcon's modular design Centralized Dust Collector are low space requirements and high separation efficiency for respective particle size range. It is essential to use a sophisticated and cost effective design for structural components of the system. Common applications include kilns, boilers, dryers, mixers, coke pushing systems, sinter strand systems, furnaces, foundry sources, smelters, and many chemical applications.
We manufacture complete line of cartridge collectors using Spun bonded, pleated fabric media. The cartridge filter is a very cost effective and compact method of filtration for fugitive & nuisance dust.
With a commitment to excellence at every level, from detailed design to quality manufacture, our dust collectors perform to the best of industry air quality standards.
Dust Collectors have a large filter area in proportion to their size and are suitable for dry, fine dust and can be equipped with lots of different types of filter materials.
Application –
- Dust and fumes - Modular cartridge collector combines enhanced performance with ease of service while cleaning the work environment.
- Industrial process contamination, source capture and for plants requiring periodic dust collection at various locations.
- High Vacuum dust collectors can be used in applications in central vacuum systems, positive or negative product receivers and high-pressure bin vents.

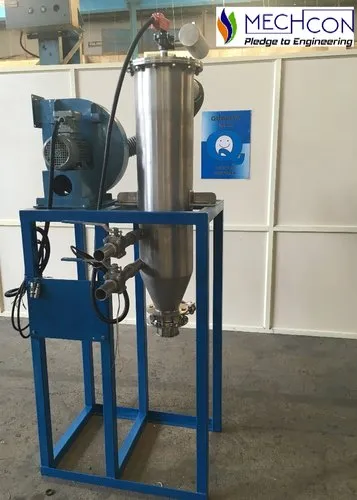

- As a dedicated Single-cartridge dust collector for one process machine, or as a bin vent on a silo.
Industry - Proven in Blast cleaning, Chemical Processing, Pharmaceutical manufacturing processes, Fiberglass and FRP, Food processing, Laser/Plasma Cutting, Paper Scrap, Rubber Grinding, Seed Processing, Mining, Thermal Spray and many more.
FEATURES & BENEFITS -
- Consistent filtration and efficient dust handling from capture to disposal.
- Designed for media capacity and optimal filtering velocity to fit the application.
- Optimized pulse cleaning for increase in filter life.
- A smaller footprint than comparable units of the same CFM.
- Design feature to promote long filter life and easy maintenance access
- Modular/cylindrical design for optimum flexibility -
- Built for durability and reliability
- Very low outlet emission level 5 mg/m3 or less makes these suitable for indoor installation.
Options - Explosion Venting, Special Inlet Designs, Custom color, Stainless Steel Construction, Alternative Hopper Designs etc.
