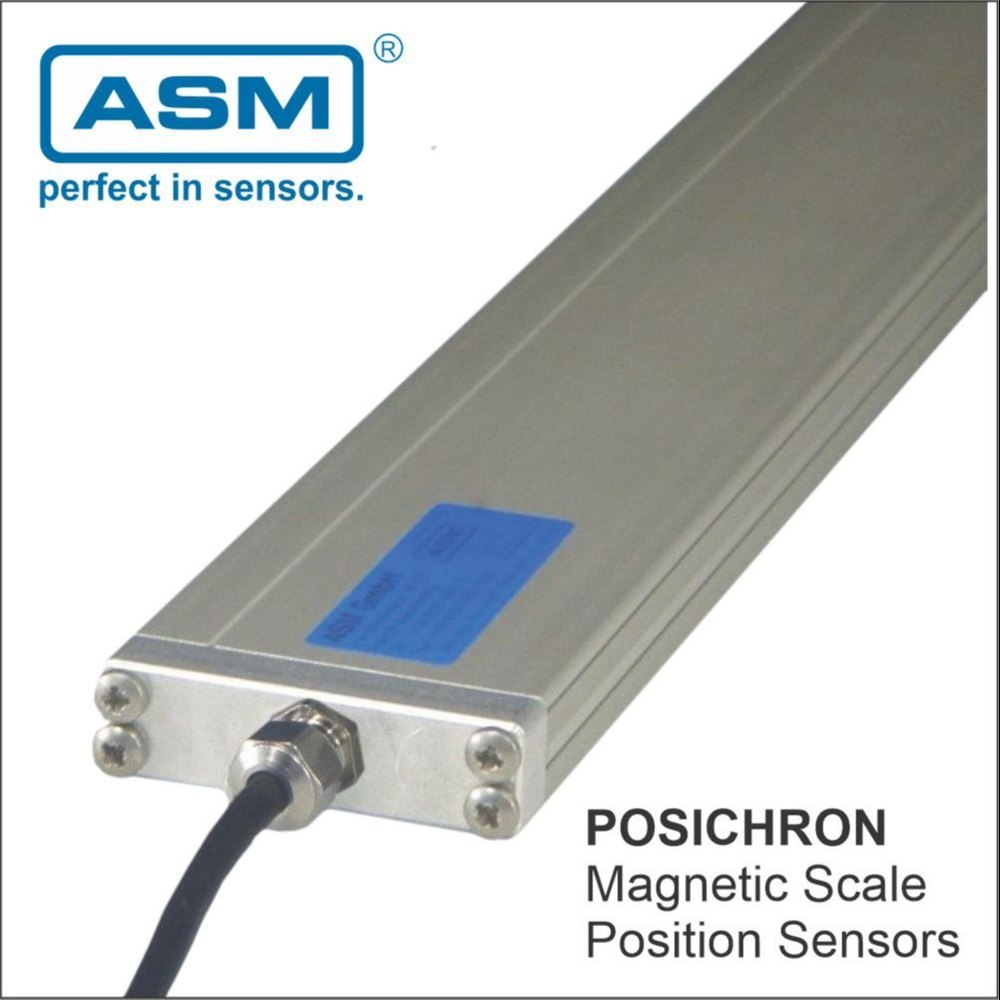

Magnetic Linear Scale

We provide our clients with a comprehensive range of Closed Magnetic Scale, which is sourced from trust worthy vendors of the market.It is designed specifically for long travel machine tools. It includes features that are essential for increasing productivity on boring mills, VTLs, milling machines and long travel lathes. Built with the operator in mind,These scales are designed & developed using top raw material and technology in conformity with industry standards. The technology used by us enables us to enhance the performance of this product.

Basic Specification:


• Resolution : 0.025mm, 0.01mm, 5µm, 1µm
• Output : LINE-DRIVER(TTL), PUSH-PULL(NPN)
• The length of signal line : 3 meter
• The accuracy : ±10µm/m, ±15µm/m, ±30µm/m
• The length of the magnetic steal : Ma*32M
• The magnetic gap : 2+2mm, 5+5mm
• Working temperature : -10°c to +80°c
• The grade of waterproof and seal : Ip67

Specification of DM series magnetic scale


• Can''t be polluted by the coolant water, coolant liquid or metal dust, so it has the strong capacity of anti-pollution
• As the metal shell, so it can''t be damaged easily. Even when doing the machine cleaning, the strong compressed air was sprayed on the magnetic scale, it also can''t be damaged
• As the non-connecting of magnetic read head and magnetic steel, so the scale is sedum damaged by the friction, then the life of the product can be longer.
• Simply designed structure and easy for installation, It uses the high sealing design and it has the 1.5mm self-adhesive magnetic steel, which the travel length can be 32M
• The magnetic scale can output grid digital or analog signal, it can output a series of resolution with 1um, 2um, 5um, 10um, 20um and 50um, which can be selected by customers. When the resolution is 1 um,the highest traveling speed can be 4m/s
• The DM series magnetic scale can be used in a very harsh environment, such as stone cutting or processing machinery, metal working machinery, knitting machinery, packaging machinery, rubber machinery, automation machinery, plasma cutting machinery, laser cutting machinery, water jet cutting machinery, semiconductor production machinery and more
