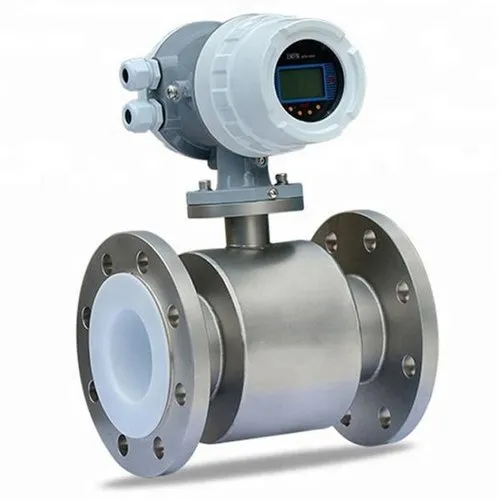

Magnetic flow meter, Ss 316l, 180 Deg Celcius Max
We can provide magnetic flow meters from 15 NB to 1000 NB. Magnetic flow meter used to measure the flow rate of conductive liquid.
We can provide magnetic flow meters from 15 NB to 1000 NB. Magnetic flow meter used to measure the flow rate of conductive liquid.
Application Media | All Conductive liquids |
Operating Temperature | 180 deg celcius max |
Display Type | LCD 6 digits for flow rate & 8 digits for totalizer flow |
Model Name/Number | NA |
Sensor | SS 316L |
Display | Digital |
Material | ms , ss |
Operating Pressure | 10 kg/ cm2 |
Line Size | 15 NB to 1000 NB |
Ambient Temp | -20 to 75 deg celcius |
Accuracy | +/- 0.5 % |
Supply Voltage | 90-250 V AC, 50 Hz OR 24 V DC |
Weight | Depends on line size |
Voltage | 90-250 V AC, 50 Hz OR 24 V DC |
Load Resistance | 600 ohm |
Power | 90-250 V AC, 50 Hz OR 24 V DC |
Fluid Temp | 180 deg celcius |
Velocity | 0.3 to 10 m/s |
Shape | Round |
Protection | IP 67 |
Minimum Conductivity | 5 mico semens |
Liquid Temperature | 180 deg celcius |
Environmental Temperature | -20 to 75 deg celcius |
Usage/Application | all conductive liquids like water,acids, molases, etp & stp water, etc |
I Deal In | New Only |
Brand | REVOTRON |
End Connection | Flanged |
Flange Standard | ANSI, DIN, PN, AWWA, Etc |
Country of Origin | Made in India |
Minimum Order Quantity | 5 |
We can provide magnetic flow meters from 15 NB to 1000 NB. Magnetic flow meter used to measure the flow rate of conductive liquid.
Ambient Air Quality Monitoring (AAQMS) LED Display
We have developed LED Display to show vairous Air Quality Parameters such as
CO
Co2
So2
No2
SoX
NoX
PM2.5
PM 10
RSPM
Sound Noise level etc.
These displays come along with various Interface technolgoies like GPRS, Ethernet
List number: - R
unless otherwise indicated the content of this “website” is the proprietary property of its owners. however, trademarks, service marks and/or logos [called “marks”] herein associated with the products listed on this” website” are the property of their respective owners and if they appear with the listed products, it is only used for the purpose of identification of those products. we do not claim as association with the mark owners, unless otherwise so specified.
meaning of list number: - “r” means refurbished, “po” means preowned, “u” means used, “t” means trading, “m” means own manufactured, “ad” means authorised dealer of original equipment manufacturer.
...Luthra Gear Roll tester is used for checking Total Composite Error(TCE), Tooth to Tooth Error(TTE) of Helical and Spur Gears .
The component gear is mounted on the arbor at right side and similarly master gear or meeting part on left side. Both gears are meshed and rotated. The deflection due to composite error or tooth to tooth error is indicated on the dial gauge. Maximum Gear diameter 200 mm can be checked Gear roll tester base is made of graded cast iron FG 220 and is duly stress relieved to give maximum stability. Base is precision hand scrapped or grounded for flatness accuracy within 0.005 mm. Gear roll tester both vertical columns are hardened and ground ,aligned and parallel to get accurate results .
Hand Lever is provided for quick release ,loading and unloading of component gear.
Precision double bearing assembly is provided in arm for smooth and rigid movement.
