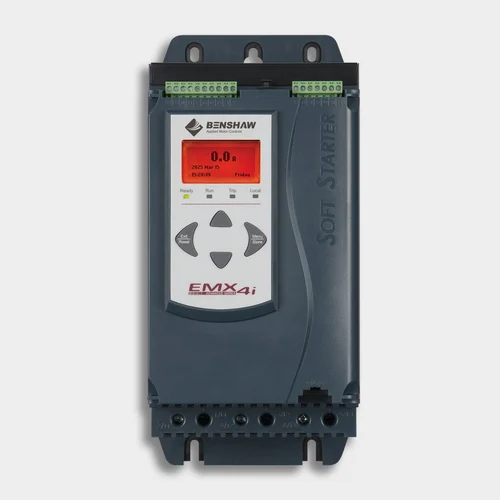

L&T Soft Starter EMX4i, For Compressors, Three Phase
35000
incl. GST
L&T Soft Starter EMX4i
24AMP to 580AMP
☰
L&T Soft Starter EMX4i
24AMP to 580AMP
| Phase | Three Phase |
| Brand | L&T |
| Power | 24AMP to 580 AMP |
| Usage/Application | Compressors |
| Model Series | EMX4i |
| Rated Operational Current Range | 580A |
| Rated Control Supply Voltage | 240VAC |
| Minimum Order Quantity | 1 Piece |
L&T Soft Starter EMX4i
24AMP to 580AMP
Note:- Please Do Not Refer Above Mentioned Prices Please Contact Us To Know The Prices.
Product Specification
| Brand | TOPCON |
| Model Name/Number | OMS 90 |
| Magnification | 3-step manual type |
| Material | Compact Base |
| Voltage | AC120V, AC230V ; 50/60Hz |
| Usage/Application | Cold light coaxial illumination by fibre light guide |
| Color | WHITE/BLUE |
| Objective | F=175mm |
| Power | 220VA |
Intellectual property: Trademark, copyright or any other type of intellectual property rights are property of their respective owner. Inorbvict is trader, resaler , refurbisher only.
|
List number |
r |
|
Disclaimer |
UNLESS OTHERWISE INDICATED THE CONTENT OF THIS “WEBSITE” IS THE PROPRIETARY PROPERTY OF ITS OWNERS. HOWEVER, TRADEMARKS, SERVICE MARKS AND/OR LOGOS [CALLED “MARKS”] HEREIN ASSOCIATED WITH THE PRODUCTS LISTED ON THIS” WEBSITE” ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS AND IF THEY APPEARS WITH THE LISTED PRODUCTS, IT IS ONLY USED FOR THE PURPOSE OF IDENTIFICATION OF THOSE PRODUCTS. WE DO NOT CLAIM AS ASSOCIATION WITH THE MARK OWNERS, UNLESS OTHERWISE SO SPECIFIED. MEANING OF LIST NUMBER: - “R” MEANS REFURBISHED, “PO” MEANS PREOWNED, “U” MEANS USED, “T” MEANS TRADING, “M” MEANS OWN MANUFACTURED, “AD” MEANS AUTHORISED DEALER OF ORIGINAL EQUIPMENT MANUFACTURERE. |
Our customers can avail from us a high-quality range of Industrial Microscope. The products are enormously admired for their top features.
Features:
Sturdiness
Advanced technology used
Top performance
Premium raw material employed
Nominal costs
Application:Industrial
...
1. System Settings
| • Input Voltage (AC) | : 250 – 470 VAC, 50 Hz |
| • On voltage (Cold Start) | : 250 VAC |
| • Auto Off voltage | : 200 VAC |
2. Protections / Setting Parameters
| • Pump Current Range | : 2 – 22 Amp. |
Sr. No.ParameterSetting RangeDefault settingTrip Time DelayDisplayLED
3. Timers
| 1 | Phase Failure | Fixed | Fixed | 4 sec ± 1 sec | SPP | YES |
| 2 | Reverse Phase | Fixed | Fixed | 4 sec ± 1 sec | SPP | YES |
| 3 | Voltage Unbalance | Fixed | Fixed | 4 sec ± 1 sec | SPP | YES |
| 4 | Current Unbalance | 20% – 70% | 50% | 4 sec ± 1 sec | CUB | YES |
| 5 | Overload | 20% – 60% | > 140 % | 15 sec | OL | YES |
| 6 | Dryrun | 60% – 95% | < 75 % | 15 sec | DRN | YES |
| 7 | High voltage | 450 – 500 V | 480 V ± 2 V | Fixed | HIU | NO |
| 8 | Low voltage | 180 – 350 V | 250 V ± 2 V | Fixed | LOU | NO |
| 9 | Extremely High Current | Fixed | 26 Amps. | 3 sec | EHC | NO |
Sr. No.ParameterSetting RangeDefault settingDisplayLED
| 1 | Power ON Timer | 3 sec – 300 sec | 60 sec ± 3 sec | PONT | YES |
| 2 | Motor OFF Timer | 5 – 720 min | OFF | OFF | YES |
4. Monitoring
| • Digital Voltmeter | : 200 – 500 V |
| • Digital Ammeter | : 2 – 22 Amp. |
5. Reset
| • Resetting mode | : Manual by OFF switch |
6. Output Relay Contact
| • Relay Mechanical life | : 10 lac operations |
| • Dielectric Strength | : 2.2 KV , 50 Hz for 1 min |
7. Enclosure & Mounting
| • Enclosure Material | : Rust proof, Shock Proof, ABS Enclosure |
| • Mounting | : Wall Mounting with 4 screw M4 × 15 mm |
| • Temperature | : 5 to 60°C |
| • Humidity | : Up to 90% RH |
8. Dimensions & Weight
| • L × W × D (mm) | : 220 x 135 x 75 mm |
| • Power Consumption | : Less than 5 Watts |
| • Weights | : gms. |
