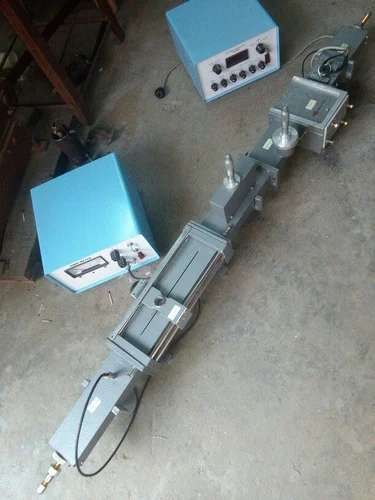

Led Voltage SWR Meter, For Laboratory
Usage/Application | Laboratory |
Display Type | LED |
Phase | Single Phase |
Material | MS |
Input Voltage | 220 V |
Minimum Order Quantity | 1 Number |
Feature
Usage/Application | Laboratory |
Display Type | LED |
Phase | Single Phase |
Material | MS |
Input Voltage | 220 V |
Minimum Order Quantity | 1 Number |
Description
Owing to our expertise in the domain of manufacturing and supplying, we have been able to be offer a wide range of Voltage Standing Wave Ratio Meters. Our offered meters are high gain, voltage amplifier that tuned at the center frequency of 1 Khz. The provided meter is used for measuring the, attenuation, VSWR and total mismatch on the line. To fulfill the different demands of the clients, we also provide these meters in various specifications.
Specifications:
Sensitivity | 0.2 u V at a 200 ohm input impledane for full scale deflection |
Noise level | At least 5 DB below full scale at rated sensitivity and maximum bandwidth with input terminated in 100 ohm and 500 ohm for crystal low and hight impedances respectively. |
Calibration | Square law, meter indicated SWR in dB |
Range | 70 dB steps, accuracy +- 0.2 dB per 10 dB steps Maximum cumulative error +0.5 dB |
Scale Selector | Normal, Expand & -5dB |
Meter scale | SWR1-4, SWR3-10, Expand -1.3 dB 0-10, expand dB 0-2 |
Gain control | Adjust the reference level, variable range 0-10dB approx. |
Input | "Bolo" bias provided for 4.3 mA low current bolo meters. |
"Crystal" 200 ohms for low impedance crystal rectifier and 200K ohms high impedance | |
Crystal | Rectifier as null detector |
Recorder Output | Socket provided for recording having 1V for Full scale deflection, internal resistance of 1000 ohms or less. |
A/C Output | BNC connector for amplified output |
Input connector | BNC(F) |
Frequency | 1000 Hz+- 10% |
Amplitude | High gain tuned at one frequency |
Power | 230 volts A.C +- 10%, 50Hz mains supply. |
