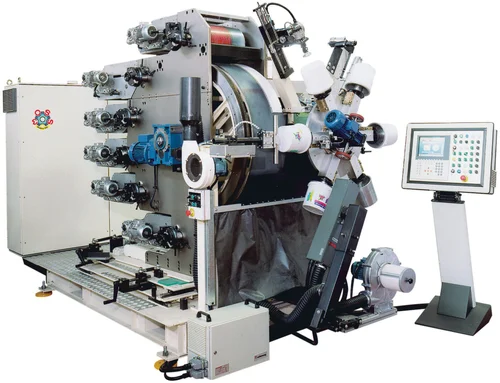

LED Curing Dry Offset Printing Machine

incl. GST

Features:-

  • Manual loading /Auto unloading of the container on the conveyor.
  • Online flame treatment on the surface of the container.
  • 4/6 color printing in a single pass with 360-degree printing.
  • 8 station mechanical indexer for high speed and consistency in every indexing positioning.
  • 4/6 color print on a single pass.
  • Very less electric power consumption.
  • AC Motor with AC frequency inverter for variable speed.
  • Operator control panel with jog/run switch, on/off flamer switch, and machine stop button.
  • Fine lateral and radial plate cylinder adjustment.
  • The mandrel rotates at a fixed position on index relative to the printing area of the offset blanket cylinder on each cup or container is accurately placed inside the printing position each time.

Optional:-

  • Magnetic plate cylinder-from USA.
  • Zero max drive on each Inking Unit-from USA.

Feature
Floor Space (mm) L 1800 X W 1000 X H 1200
Machine Weight 2.5 ton approx
Max. Machine Speed 1600-2500 container per hour approx
Mode of Feeding Manual
Power Consumption 3.5 KW/three phase
Min. Print Dia. & ht. 60 mm x 50 mm
Number of Colors 4/6 Colors
No. of Blanket 2 Blanket System
Max. Print Dia. & ht. 135 mm x 150 mm max.
Country of Origin Made in India
Description

Features:-

  • Manual loading /Auto unloading of the container on the conveyor.
  • Online flame treatment on the surface of the container.
  • 4/6 color printing in a single pass with 360-degree printing.
  • 8 station mechanical indexer for high speed and consistency in every indexing positioning.
  • 4/6 color print on a single pass.
  • Very less electric power consumption.
  • AC Motor with AC frequency inverter for variable speed.
  • Operator control panel with jog/run switch, on/off flamer switch, and machine stop button.
  • Fine lateral and radial plate cylinder adjustment.
  • The mandrel rotates at a fixed position on index relative to the printing area of the offset blanket cylinder on each cup or container is accurately placed inside the printing position each time.

Optional:-

  • Magnetic plate cylinder-from USA.
  • Zero max drive on each Inking Unit-from USA.
