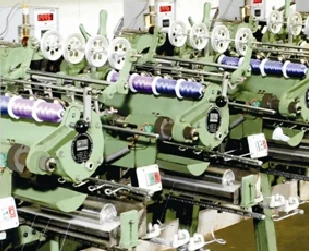

King Spool Winders

incl. GST

We are one of the leading manufacturers, suppliers and exporters of the finest quality of Precision King Spool Winders. These winders are used for the purpose of wrapping various materials in different industrial applications. Timely delivery of the offered w

  • 2, 3, 4 King Spools per Spindle
  • Capacity: Each spindle will wind simultaneously
  • Tubes: Tubes of 1.5'' to 6" Traverse upto 4" Dia.
  • Bearing Support: An out end bearing support is fitted which is quickly disengaged and replace. It is self locking and self centering giving repeatedly high accuracy in winding speed.
  • Spindle speed: Maximum 2400 R.P.M.
  • Power: 6 Spindles -1.5 HP / 12 Spindles - 3 HP

inder is assured, owing to our excellent transportation facility and efficient logistic professionals.

Feature
  • Easy to operate
  • Low maintenance
  • LonOperating Features:

  • Length Measurement by counter meter knock-off
  • Break Detector on each end of thread
  • Guide Pressure Adjustment
  • Lay Adjustment
  • Doffing Mechanism

  • Mechanical Features:

  • Drive: By individual electric motor
  • Bearings: Caged needle bearings and ball bearings are fitted
  • Cams: The new design of high speed cams are fitted as standard
  • Thread Guides: Ceramic
  • Optional: Oil Emulsion / Free Waxer


  • Technical Specifications:
    No. Of Spindles Floor Space (MM) Net Weight (Approx)
    6 3.3 mt x 1 mt 500 Kgs
    12 6.3 mt x 1 mt 1000 Kgs
    ger serving life
Description

We are one of the leading manufacturers, suppliers and exporters of the finest quality of Precision King Spool Winders. These winders are used for the purpose of wrapping various materials in different industrial applications. Timely delivery of the offered w

  • 2, 3, 4 King Spools per Spindle
  • Capacity: Each spindle will wind simultaneously
  • Tubes: Tubes of 1.5'' to 6" Traverse upto 4" Dia.
  • Bearing Support: An out end bearing support is fitted which is quickly disengaged and replace. It is self locking and self centering giving repeatedly high accuracy in winding speed.
  • Spindle speed: Maximum 2400 R.P.M.
  • Power: 6 Spindles -1.5 HP / 12 Spindles - 3 HP

inder is assured, owing to our excellent transportation facility and efficient logistic professionals.
