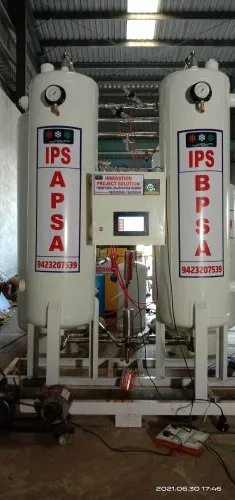

IPS 15 Medical Oxygen Plant
| Technology Used | PSA (Pressure Swing Adsorption) |
| Air Compressor (kW) | 18 kW |
| Flow Rate(LPM)/(Nm3/hr) | 250 LPM / 15 Nm3/Hr |
| Purity Of Oxygen | 93+-3% |
| Application | Industrial / Medical |
| Approval & Licenses | U.S. FDA, CE, ISO |
| Outlet/Discharge Pressure | 4 Bar (g) |
| Brand | IPS |
| Model No. / Model Name | IPS 15 |
| Type of Compressor | Screw Air Compressor |
| Compressor Brand | Empire |
| Type of Dryer | Refrigerated Type Air Dryer |
| No. of Air Receiver | No1 500 litter |
| No. of Storage Tank / Buffer Tank | No1 500 litter |
| Power Supply / Consumption | 18kw |
| Automation Grade | Fully-Automatic |
| Design | Standard |
| Filtration Stages | 8 |
| Mounting | Skid |
| Space Required (L*B*H) | 7x10x10 ft |
| Operating Temperature (degree celsius) | 25 |
| Operating Pressure | 4.5 kg |
| Country Origin | Made In India |
Feature
| Technology Used | PSA (Pressure Swing Adsorption) |
| Air Compressor (kW) | 18 kW |
| Flow Rate(LPM)/(Nm3/hr) | 250 LPM / 15 Nm3/Hr |
| Purity Of Oxygen | 93+-3% |
| Application | Industrial / Medical |
| Approval & Licenses | U.S. FDA, CE, ISO |
| Outlet/Discharge Pressure | 4 Bar (g) |
| Brand | IPS |
| Model No. / Model Name | IPS 15 |
| Type of Compressor | Screw Air Compressor |
| Compressor Brand | Empire |
| Type of Dryer | Refrigerated Type Air Dryer |
| No. of Air Receiver | No1 500 litter |
| No. of Storage Tank / Buffer Tank | No1 500 litter |
| Power Supply / Consumption | 18kw |
| Automation Grade | Fully-Automatic |
| Design | Standard |
| Filtration Stages | 8 |
| Mounting | Skid |
| Space Required (L*B*H) | 7x10x10 ft |
| Operating Temperature (degree celsius) | 25 |
| Operating Pressure | 4.5 kg |
| Country Origin | Made In India |
Description
Medical PSA Oxygen Plant Advantages 1) Reduction of oxygen cost 2) Elimination of logistical & administrative operations 3) Ready to use high Technology Solutions 4) Safe Low pressure oxygen usage instead of explosive high pressure cylinders 5) 75% cost saving Key features 1) Medical oxygen from 93% 2) Medical device CE 3) High-efficiency molecular sievs 4) fully automatic 24 /7 5) Remotely manageable via Internet 6) Real time monitoring 7) User friendly interface 8) All pipeline stainless steel
