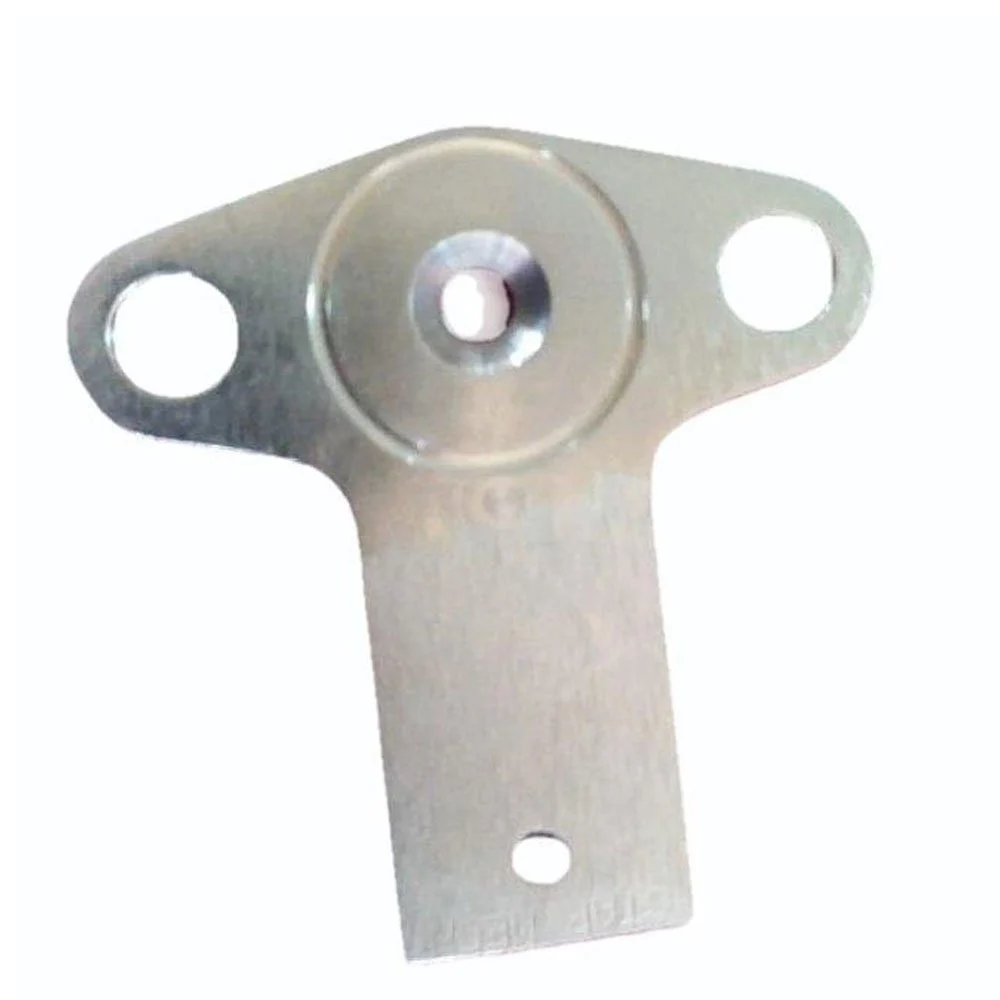

Integral Orifice Plate
| Size | 1/2 inch |
| Usage/Application | Chemical Fertilizer Pipe |
| Finishing | Polished |
| Material | SS |
| Material of Gasket | P.T.F.E |
| Material Grade | AISI 316 |
| Accuracy | +/- 2% |
| Corrosion Resistance | Yes |
| Minimum Order Quantity | 15 |
Feature
| Size | 1/2 inch |
| Usage/Application | Chemical Fertilizer Pipe |
| Finishing | Polished |
| Material | SS |
| Material of Gasket | P.T.F.E |
| Material Grade | AISI 316 |
| Accuracy | +/- 2% |
| Corrosion Resistance | Yes |
| Minimum Order Quantity | 15 |
Description
n this flow meter Orifice Plate Assembly is integrally mounted with the measuring instrument. It is a compact & complete flow meter device without need of impulse piping. Bodies with socket-weld or threaded end connections are available. IOPA with upstream & downstream piping with flange ends are also available.
Technical Specification
- Also Available Line Size: 15 mm – 40 mm ( ½" – 1 ½")
- Accuracy: +/- 2%
- Also Available Material of Pipe: AISI 316, AISI 304, Hastelloy C, Monel, other on request.
- Also Available Material of Body: A 351-CF8M, A 216-WCB, A 105, A 182-F316
