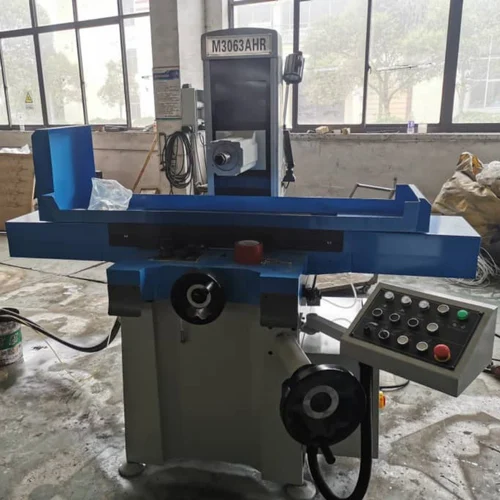

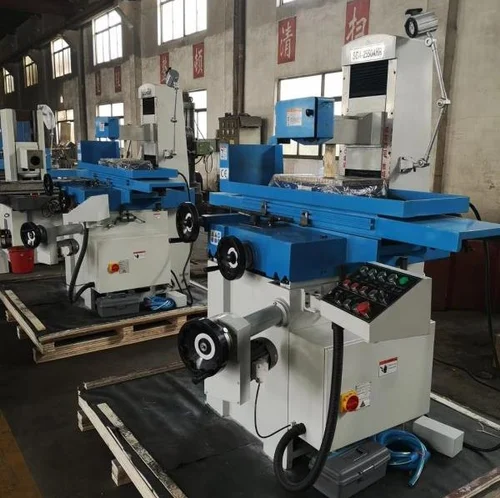

Hydraulic Surface Grinding Machine
| Type of Grinding Machine | Surface Grinding Machine |
| Overall Table Working Area (mm) | 500x250 |
| Longitudinal table Travel (mm) | 520 |
| Grinding Wheel Diameter(mm) | 200x20x31.75 |
| Cross Feed Table Travel (mm) | 250 |
| Table Surface-Spindle Center distance (mm) | 450 |
| Max. Grinding Length (mm) | 500 |
| Max. Grinding Wheel Speed (rpm) | 2800 |
| Grinding Wheel/Spindle Motor Power (HP/W) | 2/1.5 |
| Automation Grade | Automatic |
| Brand | Fostex |
| Wheel Dimension | 200x20x31.75 mm |
| Spindle Motor | 1.5kw |
| Automatic Cross Feed Motor | 1/5 hp |
| Wheel Speed | 1450 rpm |
| Cross Feed on Hand Wheel | 5.0 / 0.02 mm |
| Max Distance Center of Spindle to Table | 560 mm |
| Pump Motor | 3 hp |
| Rapid Power Cross Feed | Approx 900 mm/min (50 Hz) |
| Minimum Order Quantity | 1 Piece |
Feature
| Type of Grinding Machine | Surface Grinding Machine |
| Overall Table Working Area (mm) | 500x250 |
| Longitudinal table Travel (mm) | 520 |
| Grinding Wheel Diameter(mm) | 200x20x31.75 |
| Cross Feed Table Travel (mm) | 250 |
| Table Surface-Spindle Center distance (mm) | 450 |
| Max. Grinding Length (mm) | 500 |
| Max. Grinding Wheel Speed (rpm) | 2800 |
| Grinding Wheel/Spindle Motor Power (HP/W) | 2/1.5 |
| Automation Grade | Automatic |
| Brand | Fostex |
| Wheel Dimension | 200x20x31.75 mm |
| Spindle Motor | 1.5kw |
| Automatic Cross Feed Motor | 1/5 hp |
| Wheel Speed | 1450 rpm |
| Cross Feed on Hand Wheel | 5.0 / 0.02 mm |
| Max Distance Center of Spindle to Table | 560 mm |
| Pump Motor | 3 hp |
| Rapid Power Cross Feed | Approx 900 mm/min (50 Hz) |
| Minimum Order Quantity | 1 Piece |
Description
We are offering Hydraulic Surface Grinding Machine to our customer. One longitudinal V ways & flat and two Cross V ways for maximum rigidity. Automatic Cross Feed with intermittent continuous mode. The length of the bed way is more than that of work table to ensure no overhang of table during different grinding conditions. Slide way to for bath cross & longitudinal movement are hand scraped and turcite coated for higher wear resistance and vibration dampening long term accuracy. High precision ball screw for cross movement which ensures very high free movement and high accuracy. High precision spindle is supported by multiple anti-friction bearings adjusted radially and axially for greatest accuracy.
