Hvac Drafting

100 incl. GST
Service Includes Approval Drawings, Terminal Unit, Roof Top Unit
Site Location Anywhere
Type Of Construction Industrial
Build Up Area / Size Project Base
Service Charges Based On Project
Feature
Service Includes Approval Drawings, Terminal Unit, Roof Top Unit
Site Location Anywhere
Type Of Construction Industrial
Build Up Area / Size Project Base
Service Charges Based On Project
Description

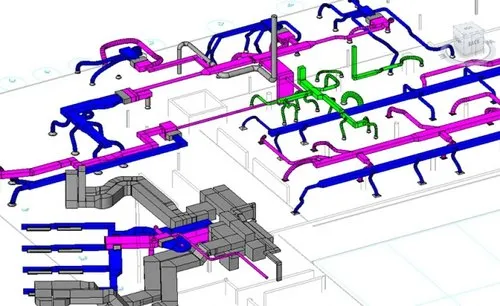

 HVAC single line air flow diagrams as per GMP requirement.
- AHU piping & ducting layout drawings with proposed location of HVAC equipment's.
- AHU grouping, AHU filtration level drawings, Room classification, pressure zoning.
- Design qualification (DQ) & HVAC validation
- Preparation of Bill of quantity(BOQ) & estimate
