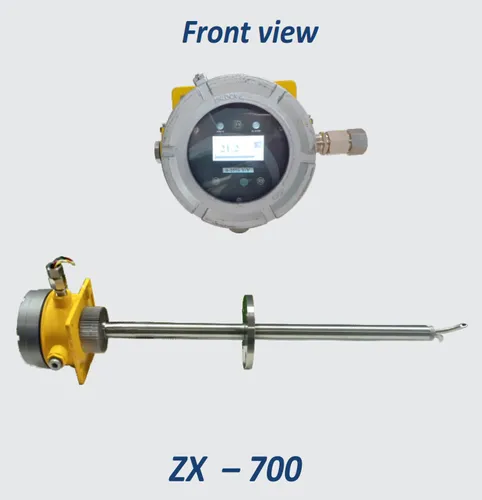

HNL Online Zirconia Based Oxygen Analyzer, 24 Vdc, Model Name/Number: Zx 700

325000 incl. GST

Zirconia Based Oxygen Analyzer
Sensor principle : Zirconia
Measuring Range : 0 to 25%V/V & optional 0 to 100%V/V
Accuracy : +/-0.5%
Resolution :
Response time : < 15 sec for T90
Probe length : Up to 435 mm or longer (as per request)
Output : 4-20 mA, RS 485 MODBUS RTU
Relay : Settable
Display : Graphic LCD Display
Calibration : Non-Intrusive Operation thru Magnetic Pen
Operating Temperature : Up to 400° C ( Optional 700° C with PT TUBE )

Feature
Model Name/Number ZX 700
Brand HNL
Usage/Application Trace Oxygen
Product Type Online
Power Supply 24 VDC
Description

Zirconia Based Oxygen Analyzer
Sensor principle : Zirconia
Measuring Range : 0 to 25%V/V & optional 0 to 100%V/V
Accuracy : +/-0.5%
Resolution :
Response time : < 15 sec for T90
Probe length : Up to 435 mm or longer (as per request)
Output : 4-20 mA, RS 485 MODBUS RTU
Relay : Settable
Display : Graphic LCD Display
Calibration : Non-Intrusive Operation thru Magnetic Pen
Operating Temperature : Up to 400° C ( Optional 700° C with PT TUBE )
