HITACHI Large Character Inkjet Printer
| Model Name/Number | HITACHI-UX D110W (SMALL LARGE CHARACTER) - CONTINUOUS INKJET PRINTER |
| Brand | HITACHI |
| Print Method | Dot Matrix |
| Ethernet (Modbus communication) | USB for user data storage |
| Printhead cable length / angle | 4m (in-line/90 degrees) |
| Data interface | RS-232C at baud rates selectable up to 115,200bps |
| Output signal | Print in progress or Print complete, Online (NPN/PNP Selectable), Print ready, Fault, Warning |
| Message storage capacity | 300 messages |
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing,Remote control |
| Operating temperature range | 0-50 degree C 1067K Ink |
| Operating humidity range | 30-90% RH (no condensation) |
| International protection | IP65 |
| Approximate weight | 27kg |
| Dimensions | 400 x 320 x 527 mm |
| Approval | CE, UL, cUL, RCM, FCC, ICES |
| Power supply (Automatic voltage selection) | AC100-120/220-240V+-10% 50/60Hz 120VA |
| 2D code printing | Data Matrix |
| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar |
| Character height | 3 - 25 mm |
| Display & input device | WYSIWYG design |
| Maximum number of print characters | Up to 1,000 characters |
| Max. print line number | Up to 4 lines |
| Printing Height | 25 mm |
| Nozzle Size | 100 Micron |
| Display | TFT LCD (10.4" color), backlight provided |
| Input device | Touch panel, input sound provided |
| User pattern | 200 patterns each for dot matrix |
| Print functions | Calendar, Count, Font mixture, Password |
| Standard characters | Alphanumeric- A-Z, a-z, 0-9, symbols -27 and space- Total 90 |
| Maximum print rate | Up to 468 |
| Screen language ( 2 languages selectable ) | English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish,Portuguese |
| Manufactured | Made In Japan |
| Minimum Order Quantity | 1 Piece |
Feature
| Model Name/Number | HITACHI-UX D110W (SMALL LARGE CHARACTER) - CONTINUOUS INKJET PRINTER |
| Brand | HITACHI |
| Print Method | Dot Matrix |
| Ethernet (Modbus communication) | USB for user data storage |
| Printhead cable length / angle | 4m (in-line/90 degrees) |
| Data interface | RS-232C at baud rates selectable up to 115,200bps |
| Output signal | Print in progress or Print complete, Online (NPN/PNP Selectable), Print ready, Fault, Warning |
| Message storage capacity | 300 messages |
| Input signal | Print target detection, Printing stop, Rotary encoder pulse, Reciprocative printing,Remote control |
| Operating temperature range | 0-50 degree C 1067K Ink |
| Operating humidity range | 30-90% RH (no condensation) |
| International protection | IP65 |
| Approximate weight | 27kg |
| Dimensions | 400 x 320 x 527 mm |
| Approval | CE, UL, cUL, RCM, FCC, ICES |
| Power supply (Automatic voltage selection) | AC100-120/220-240V+-10% 50/60Hz 120VA |
| 2D code printing | Data Matrix |
| Barcode printing | code39, ITF, NW-7, EAN-13, EAN-8, UPC-A, UPC-E, code128/EAN-128, GS-1 DataBar |
| Character height | 3 - 25 mm |
| Display & input device | WYSIWYG design |
| Maximum number of print characters | Up to 1,000 characters |
| Max. print line number | Up to 4 lines |
| Printing Height | 25 mm |
| Nozzle Size | 100 Micron |
| Display | TFT LCD (10.4" color), backlight provided |
| Input device | Touch panel, input sound provided |
| User pattern | 200 patterns each for dot matrix |
| Print functions | Calendar, Count, Font mixture, Password |
| Standard characters | Alphanumeric- A-Z, a-z, 0-9, symbols -27 and space- Total 90 |
| Maximum print rate | Up to 468 |
| Screen language ( 2 languages selectable ) | English, Chinese, Korean, Thai, Vietnamese, German, French, Dutch, Italian, Spanish,Portuguese |
| Manufactured | Made In Japan |
| Minimum Order Quantity | 1 Piece |
Description

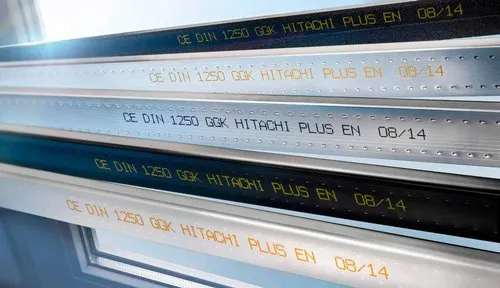

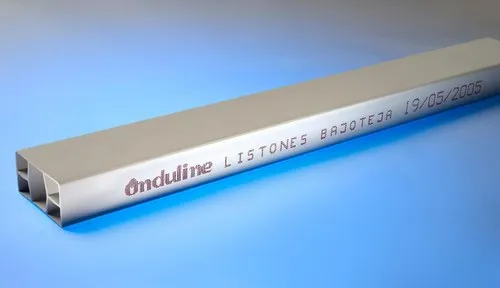

We are the authorisded Distributors of HITACHI coding & marking machines,This machines are used to print variable information like Batch No, Mfg. Date, Exp. Date, Bar Code, Seq. No, Company Logo etc directly on any porous or non-porous packing, materials like pouches, labels, cartons, packet, cables, pipes, containers etc and having a many number of installation across the India.
