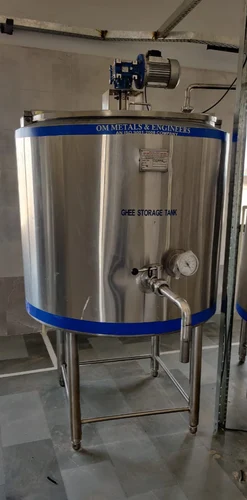

Ghee Storage Tank, Capacity: 1000 Ltrs
The inner shell will be cylindrical in shape in S. S. 304 grade of 2mm thick and bottom dish ends in conical shape of S. S. 304 grade of 2mm thick.
Jacket will be of S. S. sheet of 2mm thick with flat bottom.
Outer shell with flat bottom will be fabricated from S.S. 2mm Thick.
The proper Insulation between jacket and outer shell by Glass wool material.
All the inner shell welding joints will be ground smooth and polished up to Dairy finish.
Accessories Fitted:
1) S. S. Bottom outlet of 38 mm with 2 way S. S. plug Valve. ------- 1 No.
2) S. S. Side Outlet of 38mm with 2 way S.S. Plug Valve. -------------1 No.
3) S. S. Girder of 4mm thick for mounting the geared motor. -------- 1 No.
5) S. S. No foam inlet of 38mm. ---------------------------------------1 No.
6 ) S. S. thermowell for dial thermometer. ---------------------------- 1 No.
7) S. S. legs with adjustable ball feet. --------------------------------- 4 Nos.
8) S.S. sprinkler pipe of 25mm at the top of the jacket----------------1 No.
9) S.S. Steam spurger at the bottom of the jacket -------------------1 No.
10) S.S. Syphon pipe for the jacket. ---------------------------------1 No.
11) S. S. bi - section cover in 1.6mm thick. --------------------------- 2 Nos.
