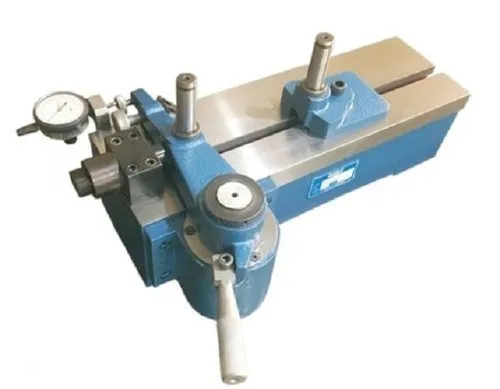

Gear Roll Tester

38500 incl. GST

Luthra Gear Roll tester  is used  for checking Total Composite Error(TCE), Tooth to Tooth Error(TTE) of Helical and Spur Gears .
The component gear is mounted on the arbor at right side and similarly master gear or meeting part on left side. Both gears are meshed and rotated. The deflection due to composite error or tooth to tooth error is indicated on the dial gauge. Maximum Gear diameter 200 mm can be checked Gear roll tester base is made of graded cast iron FG 220 and is duly stress relieved to give maximum stability. Base is precision hand scrapped or grounded for flatness accuracy within 0.005 mm. Gear roll tester both vertical columns are hardened and ground ,aligned and parallel to get accurate results .
Hand Lever is provided for quick release ,loading and unloading of  component gear.
Precision double bearing assembly is provided in arm for smooth and rigid movement.

Feature
Brand Luthra
Material Mild Steel
Usage/Application Industrial
Maximum Gear Diameter 200 mm
Meter Type Analog
Country of Origin Made in India
Description

Luthra Gear Roll tester  is used  for checking Total Composite Error(TCE), Tooth to Tooth Error(TTE) of Helical and Spur Gears .
The component gear is mounted on the arbor at right side and similarly master gear or meeting part on left side. Both gears are meshed and rotated. The deflection due to composite error or tooth to tooth error is indicated on the dial gauge. Maximum Gear diameter 200 mm can be checked Gear roll tester base is made of graded cast iron FG 220 and is duly stress relieved to give maximum stability. Base is precision hand scrapped or grounded for flatness accuracy within 0.005 mm. Gear roll tester both vertical columns are hardened and ground ,aligned and parallel to get accurate results .
Hand Lever is provided for quick release ,loading and unloading of  component gear.
Precision double bearing assembly is provided in arm for smooth and rigid movement.
