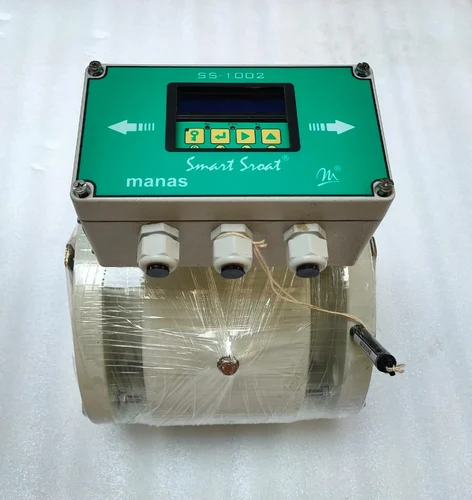

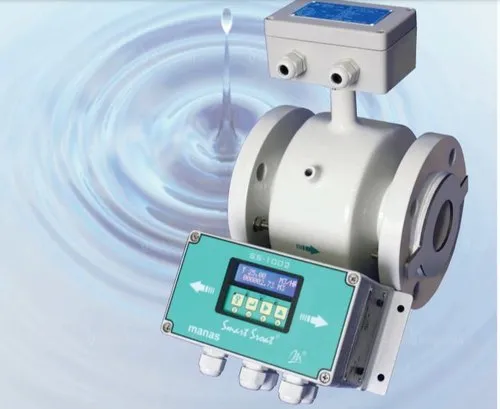

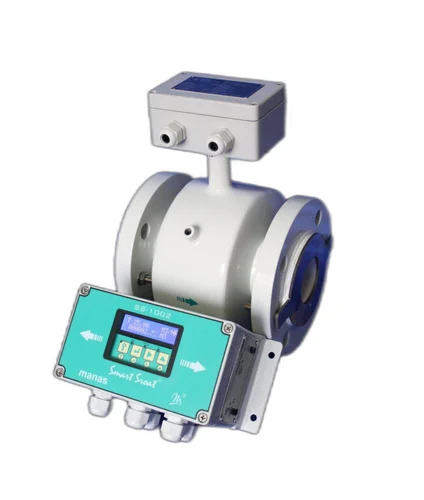

Full Bore Electromagnetic Flow Meter
| Brand | manas microsystems |
| Meter | DN 20 |
| Sensing measuring electrodes | 2 No. |
| Earth electrodes | 1 No. |
| Empty tube electrodes | 1 No. |
| Pipe material | SS 304 (Non magnetic) |
| Flange material | MS |
| Coil housing material | MS |
| Power supply | 85V to 265V AC,50Hz |
| Operating temperature | 0-50 Deg C |
| Temperature drift | 0.015%/deg C maximum of full scale |
| Humidity | 90% of R.H. Maximum non-condensing |
| Operating ambient temperature | 0-60 deg C |
Feature
| Brand | manas microsystems |
| Meter | DN 20 |
| Sensing measuring electrodes | 2 No. |
| Earth electrodes | 1 No. |
| Empty tube electrodes | 1 No. |
| Pipe material | SS 304 (Non magnetic) |
| Flange material | MS |
| Coil housing material | MS |
| Power supply | 85V to 265V AC,50Hz |
| Operating temperature | 0-50 Deg C |
| Temperature drift | 0.015%/deg C maximum of full scale |
| Humidity | 90% of R.H. Maximum non-condensing |
| Operating ambient temperature | 0-60 deg C |
Description
| DN | m3/Hr | LPM | LPS | DN | m3/Hr | LPM | LPS |
| 10 | 0.282 | 4.712 | 0.078 | 80 | 18.095 | 301.592 | 5.026 |
| 15 | 0.636 | 10.602 | 0.176 | 100 | 28.274 | 471.238 | 7.853 |
| 20 | 1.13 | 18.849 | 0.314 | 125 | 44.178 | 736.31 | 12.271 |
| 25 | 1.767 | 29.452 | 0.49 | 150 | 63.617 | 1060.287 | 17.671 |
| 32 | 2.895 | 48.254 | 0.804 | 200 | 113.097 | 1884.955 | 31.415 |
| 40 | 4.523 | 75.398 | 1.256 | 250 | 176.714 | 2945.243 | 49.087 |
| 50 | 7.068 | 117.809 | 1.963 | 300 | 254.469 | 4241.15 | 70.685 |
| 65 | 11.945 | 199.098 | 3.318 | 350 | 346.356 | 5772.608 | 96.21 |
Get Best QuoteRequest A Callback
