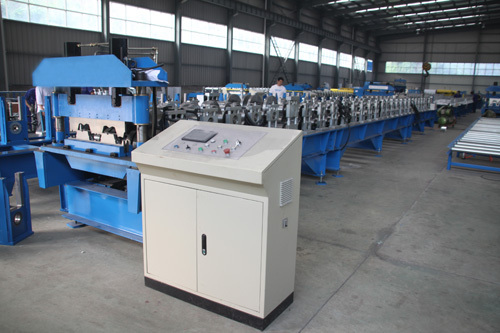

Floor Deck Panel Forming Machine

Entry Gate:
Entry gate will be provided for movement of sheet to roll former.


Main Base:
The main base is MS fabricated structure and adequately ribbed to minimize the distortion
It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.


Mill stands (Station):
The stands are mounted on the bed of the machine the line alignment can be easily done due to guideways arranged on the bed of the machine.Each forming head consists of a fixed housing and sliding type out board housing.The mill stands will be arranged to locate shafts mounted on taper beaFor the top shafts, the bearings are housed in the cartridge type bearing block.The bottom shaft bearings are located in the bored machined in the housing,The bottom arbors are fixed in a position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.


Roll shafts:

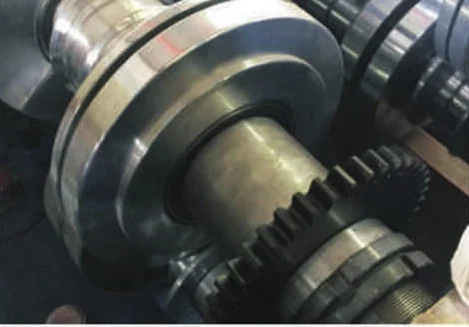

The roll shafts dia. 70mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive:
The drive to the roll former will be by means of a chain
The main drive will be provided by means of 10 HP motor


Tooling:
One set of Tooling with EN grade will be from imported material suitable for your machine as standard supply
The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with a final template for above.

Cutting Unit (Hydro):
Hydraulically operated power pack along with cutting die with 3 HP electrical.
