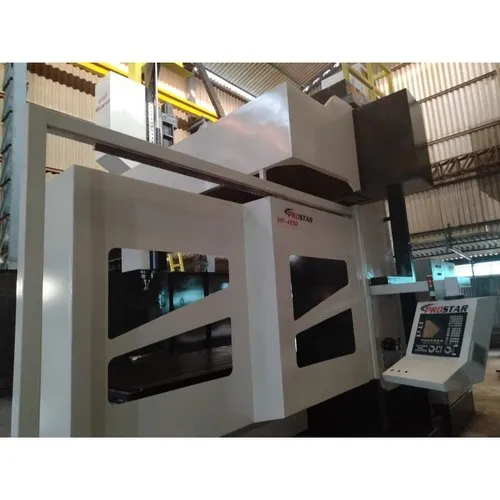

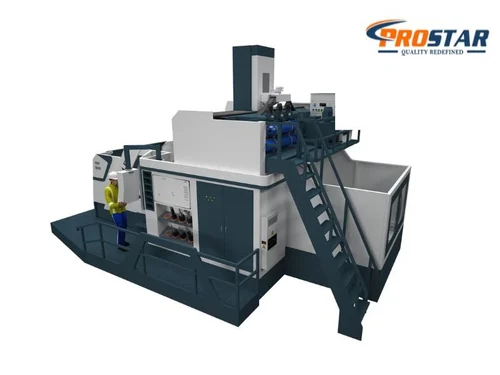

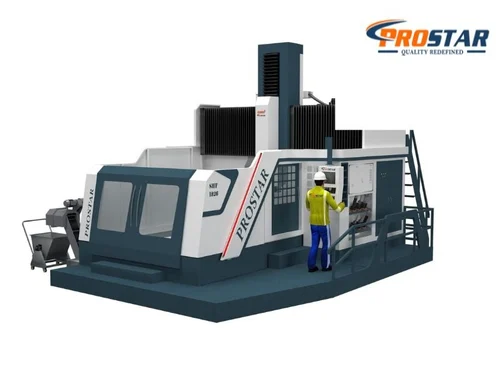

Fixed Beam Machining Centre
| Spindle Speed | 6000rpm |
| Z - Axis Travel | 1100mm |
| Brand | Prostar |
| Machine Height | 4200mm |
| Machine Width | 4500mm |
| Y - Axis Travel | 3000mm |
| X - Axis Travel | 4000mm |
| Tool Max Diameter | 132mm |
| Tool Max Length | 300mm |
| Repeatability Z - Axis | 1.6mm |
| Tool Max Weight | 30 kg |
| Tool Magazine Capacity | 40 nos |
| Rapid Table Y Axis | 15m/min |
| Frequency | 60Hz |
| Power Consumption | 80 kW |
| Rapid Table Z Axis | 10m/min |
| Repeatability Y - Axis | 1.2mm |
| Rapid Table X Axis | 20m/min |
| Machine Length | 6000mm |
| Y - Full Travel | 2.0mm |
| Table Width | 1500mm |
| Table Length | 4000mm |
| Voltage | 440V |
| Automatic Grade | Automatic |
| Repeatability X - Axis | 1.5mm |
| Max Loading Capacity | 32 kg/M2 |
| Z - Full Travel | 2.0mm |
| Spindle Motor Output | 19.5 kW |
| X - Full Travel | 2.0mm |
| Cutting Feed Rate | 1m/min |
| Country of Origin | Made in India |
Feature
| Spindle Speed | 6000rpm |
| Z - Axis Travel | 1100mm |
| Brand | Prostar |
| Machine Height | 4200mm |
| Machine Width | 4500mm |
| Y - Axis Travel | 3000mm |
| X - Axis Travel | 4000mm |
| Tool Max Diameter | 132mm |
| Tool Max Length | 300mm |
| Repeatability Z - Axis | 1.6mm |
| Tool Max Weight | 30 kg |
| Tool Magazine Capacity | 40 nos |
| Rapid Table Y Axis | 15m/min |
| Frequency | 60Hz |
| Power Consumption | 80 kW |
| Rapid Table Z Axis | 10m/min |
| Repeatability Y - Axis | 1.2mm |
| Rapid Table X Axis | 20m/min |
| Machine Length | 6000mm |
| Y - Full Travel | 2.0mm |
| Table Width | 1500mm |
| Table Length | 4000mm |
| Voltage | 440V |
| Automatic Grade | Automatic |
| Repeatability X - Axis | 1.5mm |
| Max Loading Capacity | 32 kg/M2 |
| Z - Full Travel | 2.0mm |
| Spindle Motor Output | 19.5 kW |
| X - Full Travel | 2.0mm |
| Cutting Feed Rate | 1m/min |
| Country of Origin | Made in India |
Description
We are India's first heavy duty Double Columna Vertical Machining Center manufacturer.
SHF Series double column machining centers are the core products of PROSTAR. With full range of specification and customizable solutions, these machining centers become best-selling products and meet all requirements from rapid feed rate, high efficiency to heavy duty.
