ESI Sysweld Welding Process Simulation Software

SYSWELD is used for Simulation of the Welding and Heat Treatment Processes with the help of software. It is produced by a world leader in multi physics simulation solutions ESI Group, France.

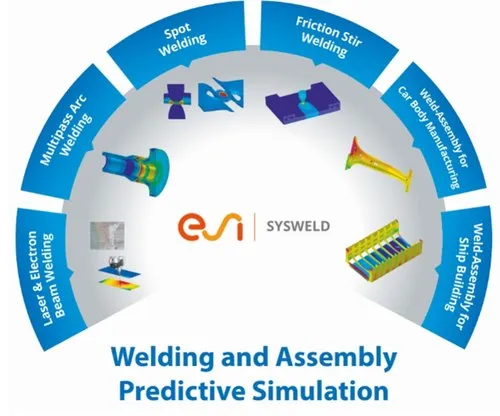

SYSWELD addresses the entire gamut of welding processes whether TIG/ MIG/ Gas/ Plasma/ Laser/ Friction Stir or any other type.

·       SYSWELD has a comprehensive materials library

·       SYSWELD accurately predicts Mechanical, Thermal and Metallurgical property changes in the welded parts with the help of multi-physics

·       SYSWELD helps you optimize the welding parameters (like welding velocity, angle, number of passes, weld pool, weldment material, clamping, maximum and minimum temperature) for best results

·       SYSWELD helps you very accurately predict the following:

o   effects of welding on welded materials (like plastic strains, thermal strains, yield stress, residual stresses, hardness / brittleness),

o   defects (such as deformations, fractures, cracks, shrinkage) including their locations and size,

o   weldpool and penetration,

o   grain size and structure

o   phase transformations (Austenite/ Ferrite/ Bainite/ Martensite),

o   transient plots for thermal properties (like conductivity, enthalpy, specific heat, latent heat, density) and mechanical properties (like Young’s modulus, Poisson Coefficient)

Thus SYSWELD can help you simulate the entire welding process as it takes place much before you actually carry out any welding. It saves time, effort and cost by eliminating need for physical prototyping while ensuring welded joints of the best quality
