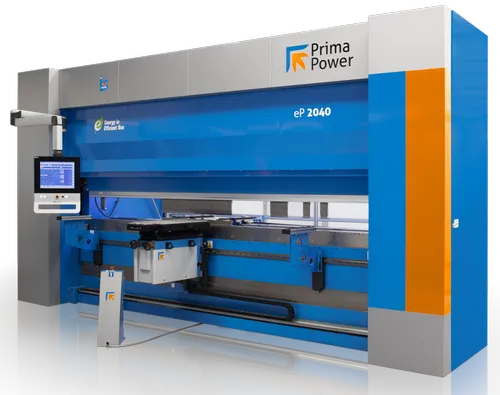

EP Series Servo Electric Press Brake
| Bending Length | 2100,3150,3640,4100 mm |
| Bending Force | 55,105,135,200 Tons |
| Ram Return Speed | 200mm/s |
| Ram Approach Speed | 200mm/s |
| Technology | Servo-Electric Press Brake |
| Daylight | 600,650,700 mm |
Feature
| Bending Length | 2100,3150,3640,4100 mm |
| Bending Force | 55,105,135,200 Tons |
| Ram Return Speed | 200mm/s |
| Ram Approach Speed | 200mm/s |
| Technology | Servo-Electric Press Brake |
| Daylight | 600,650,700 mm |
Description
Prime Power EP Series Electric Bending Machine Fast, accurate, efficient servo-electric bending solution.
Highlights
- servo-electric drive system: sustainability and manufacturing efficiency and productivity, greater versatility, outstanding accuracy, lower power consumption, less maintenance and no oil to purchase and to get rid of
- pulley-belt system actuated by Prima Electro servo-drives distributes the bending force over the whole bending length
- 5-year warranty for the mechanical drive system in combination with annual maintenance agreement
- rigid and stable O-frame ensuring:
- tool alignment even under stress deformation
- excellent ram position accuracy and repeatability with bed-referenced linear encoders measuring upper and lower beam relative position
- flexibility: there is no throat limitations for long parts (typical of C-frame structure)
- gauging over the whole bending length
- Prima Electro Open Control: MSWindows based, two processors, operator –friendly 17” touch screen user interface, 2D graphical on-line programming and 3D visualization for Auto-Pol off-line programs
- easy-to-use and effective AutoPOL off-line programming
- block Laser safety equipment by Lazer Safe, most advanced solution in terms of productivity and protection level
- angle measurement option: high speed digital image processing technology to measure the angle of the formed work piece on every cycle with automatic correction of the bend program
- AQ-bending follower: no need of a second operator for supporting big parts
- Wila tooling system (recommended): quick accurate and flexible
