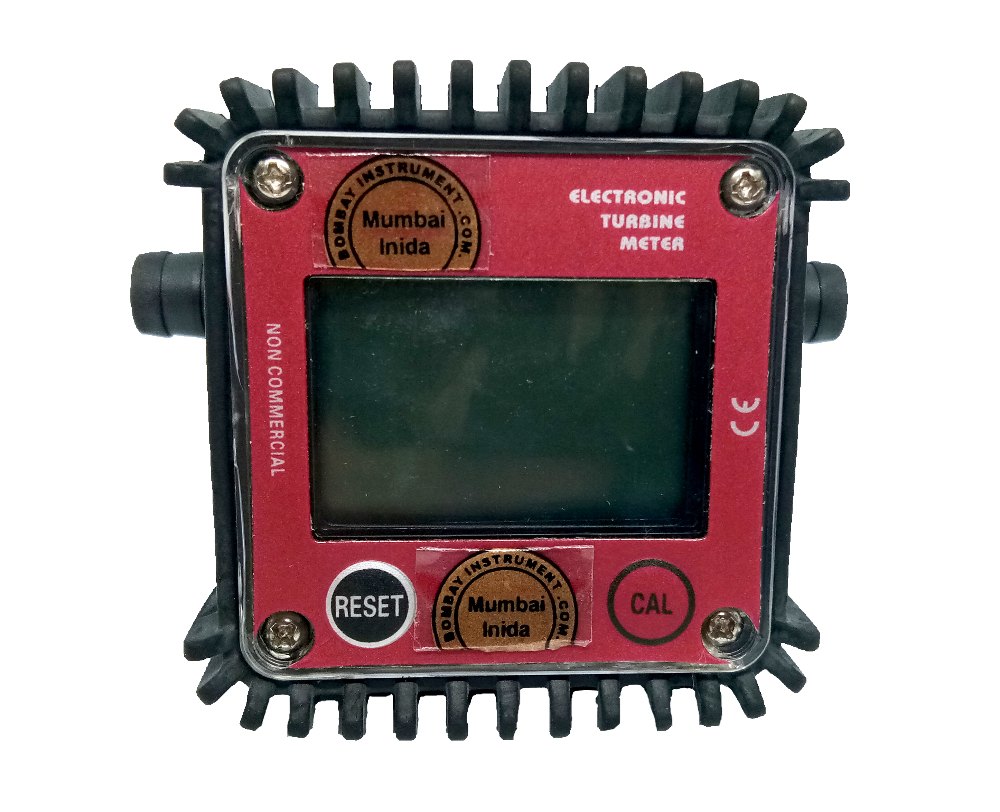

Electronic Turbine Meter, Model Name/Number: 11-TR-DF-PPC

A Meter for delivering low viscosity fluids with a turbine measuring system. Easy to install, in line or at the end of a delivery pipe, equipped with an easy to read, compact screen. the meter can be installed directly onto the nozzle for convenient, on the spot reading of the quantity delivered. thanks to its strong causing & a sealed plug in electronic card, this sturdy metal can be used in practically all conditions.
We Have specialisation in all types of Electronic Turbine Meter
We stock for Electronic Turbine Meter


BIMCO ELECTRONIC TURBINE METER

SERIES  of BIMCO ELECTRONIC TURBINE METER      :   11-TR-DF-PPC

Accuracy of BIMCO ELECTRONIC TURBINE METER     :   ±1%

Pressure of BIMCO ELECTRONIC TURBINE METER  (max)            :   20Bar

Temp Range of BIMCO ELECTRONIC TURBINE METER        :  -10 °C-50°C

Medium of BIMCO ELECTRONIC TURBINE METER    :   Diesel, Adblue, Chemicals, gasoline, kerosene, milk, water

Repeatability of BIMCO ELECTRONIC TURBINE METER    :   ± 0.5%

Display of BIMCO ELECTRONIC TURBINE METER   :   Flow Rate and Total Flow

Indicator mounting of BIMCO ELECTRONIC TURBINE METER  :  Inbuilt (Field Mount)

Operating Temp. of BIMCO ELECTRONIC TURBINE METER  :  Ambient Temperature

Operating Pressure    :   0.5 kg/cm2
