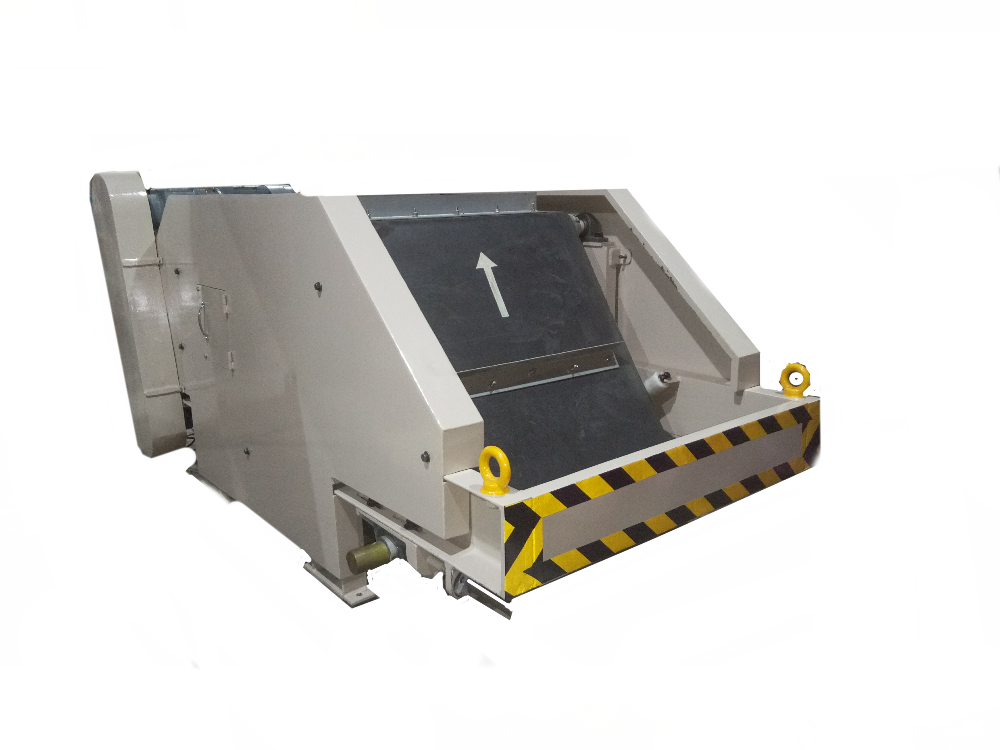

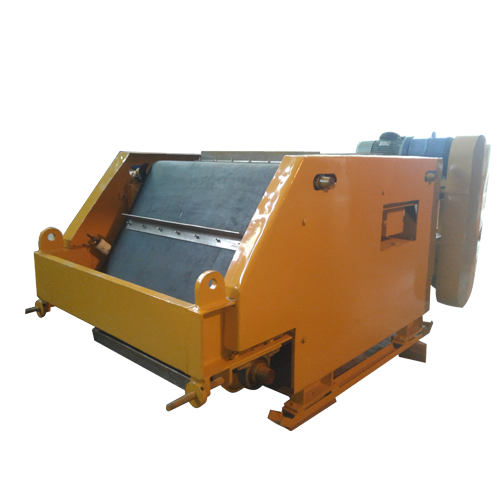

Electromagnetic Overband Separator
| Material | Aluminium, Magnet, MS |
| Phase | Three Phase |
| Frequency | 50 Hz |
| Power Source | Electric |
| Supply Voltage | 440 VAC |
| Operating voltage | 220VDC |
| Belt Width | 600 mm |
| Maximum Height | 450 mm |
| Maximum Layer Thickness | 300 mm |
| Country of Origin | Made in India |
Feature
| Material | Aluminium, Magnet, MS |
| Phase | Three Phase |
| Frequency | 50 Hz |
| Power Source | Electric |
| Supply Voltage | 440 VAC |
| Operating voltage | 220VDC |
| Belt Width | 600 mm |
| Maximum Height | 450 mm |
| Maximum Layer Thickness | 300 mm |
| Country of Origin | Made in India |
Description
Electromagnetic Overband Magnets have a deeply penetrating magnetic field and are therefore suitable for very thick layers. A control box is required. Installation perpendicular to or in line with conveyor belt.
Overband can be positioned either inline over a conveyor head pulley or across on conveyor belt. All models are designed to be virtually maintenance free and are available with an electric drive. Overband Magnetic Separators are designed on the basis of conveyor belt width.
Other Details
• Deep magnetic field
• Separate Fe particles from 1 mm
• For belt widths 600 - 1600 mm
• Electromagnet (Air cooled OR Oil cooled)
