Electromagnetic Flow Meter with Telemetry System
| Application Media | Water |
| Model Name/Number | SS1002 |
| Brand | manas microsystems |
| Usage/Application | ETP |
| Connection | Flanged end |
| Display | Digital |
| Power Supply | 85V to 265V AC, 50Hz |
| Meter | DN 10 |
| Sensing measuring electrodes | 2 |
| Earth electrodes | 1 |
| Empty tube electrodes | 1 |
| Pipe material | SS 304 (Non magnetic) |
| Flange material | MS |
| Coil housing material | MS |
| Operating temperature | 0-50 Deg C |
| Temperature drift | 0.015%/deg C maximum of full scale |
| Humidity | 90% of R.H. Maximum non-condensing |
| Operating ambient temperature | 0-60 deg C |
Feature
| Application Media | Water |
| Model Name/Number | SS1002 |
| Brand | manas microsystems |
| Usage/Application | ETP |
| Connection | Flanged end |
| Display | Digital |
| Power Supply | 85V to 265V AC, 50Hz |
| Meter | DN 10 |
| Sensing measuring electrodes | 2 |
| Earth electrodes | 1 |
| Empty tube electrodes | 1 |
| Pipe material | SS 304 (Non magnetic) |
| Flange material | MS |
| Coil housing material | MS |
| Operating temperature | 0-50 Deg C |
| Temperature drift | 0.015%/deg C maximum of full scale |
| Humidity | 90% of R.H. Maximum non-condensing |
| Operating ambient temperature | 0-60 deg C |
Description

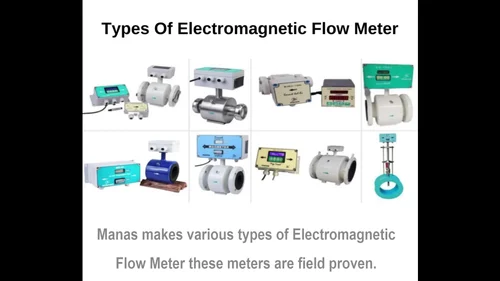

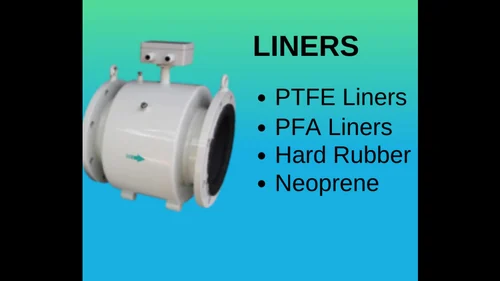

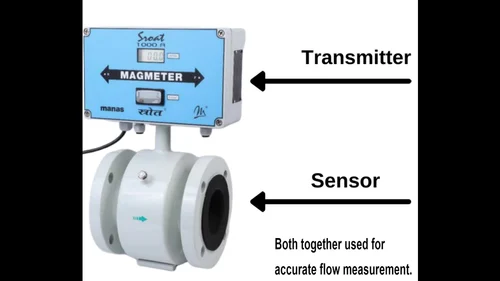

Manas have now introduced a new type of primary flow sensor & smart flow transmitter in their electromagnetic flow- meter series. This sensor works on the Faraday's law of electromagnetic induction. The meter is true volume measuring meter. The measurement is independent of Viscosity. Density, Dissolved/Un-dissolved solids, pressure or temperature of the flowing liquid as long as it maintains certain minimum conductivity. Various types of Liner & Electrode materials are available as per application requirements. The new sensors are more compact in size & more sensitive. Earth ring or earth electrode, both options are available. Empty tube detection is also provided.
Principle Of Operation
The SROAT 1002 series electromagnetic flow meters work on Faraday's law of electromagnetic induction. It, in brief, states; when a conductor moves within a magnetic field, voltage is induced in it which is proportional to the velocity of conductor.
In this case the conductor is flowing media.
The equation is as below :
E = B.V.D
Where
E = Induced voltage (proportional to velocity)
B = Magneticflux density
V = Mean velocity of the media
D = Diameter of flow-sensor (distance between the sensing electrodes)
For a given size of flow tube & compatible amplifier the flux density 'B' is constant, the distance between the electrodes is constant. Hence, the induced voltage is proportional to the flowing media. Thus the meter can be calibrated in terms of volumetric flow rate by knowing the cross-sectional area of the tube.
Principal Advantages:
- Robust, rugged, welded steel/stainless steel construction withstanding to IP68.
- Very much suitable for submerged or buried application.
- No Pressure Drop across the sensor, being full bore construction.
- Measurement independent of un-dissolved solids.
- Long lasting Ebonite rubber lining gives long life of sensor,
- End connection flanges as per customer's Requirements.
