Electric Eco Strip 999 Cutting and Stripping Machine, Automation Grade: Automatic
| Automation Grade | Automatic |
| Power Source | Electric |
| Voltage | 240 V |
| Wire Length Range | 50 mm |
| Dimension | 550x520x370mm |
| Model Number | Eco Strip 999 |
| Motor | 1.6 Kw |
| Net Weight | 85 Kg |
| Country of Origin | Made in India |
Feature
| Automation Grade | Automatic |
| Power Source | Electric |
| Voltage | 240 V |
| Wire Length Range | 50 mm |
| Dimension | 550x520x370mm |
| Model Number | Eco Strip 999 |
| Motor | 1.6 Kw |
| Net Weight | 85 Kg |
| Country of Origin | Made in India |
Description

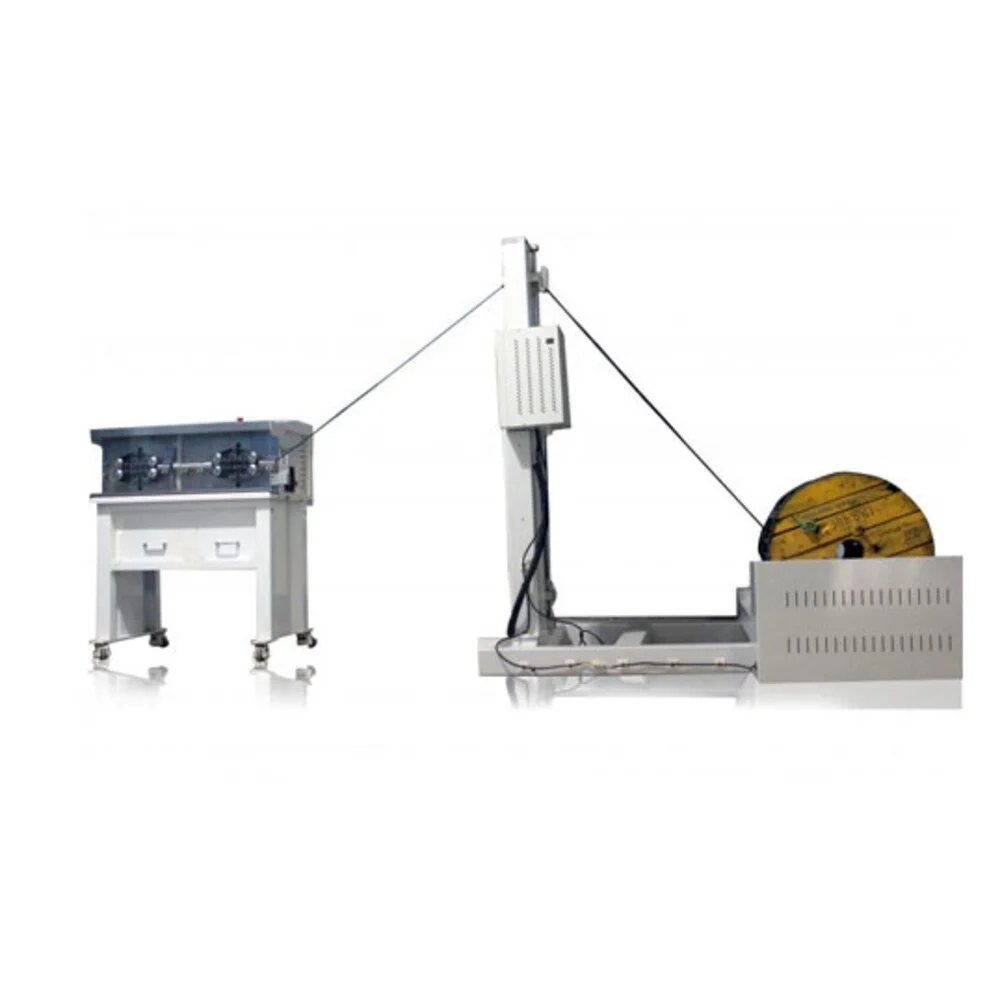

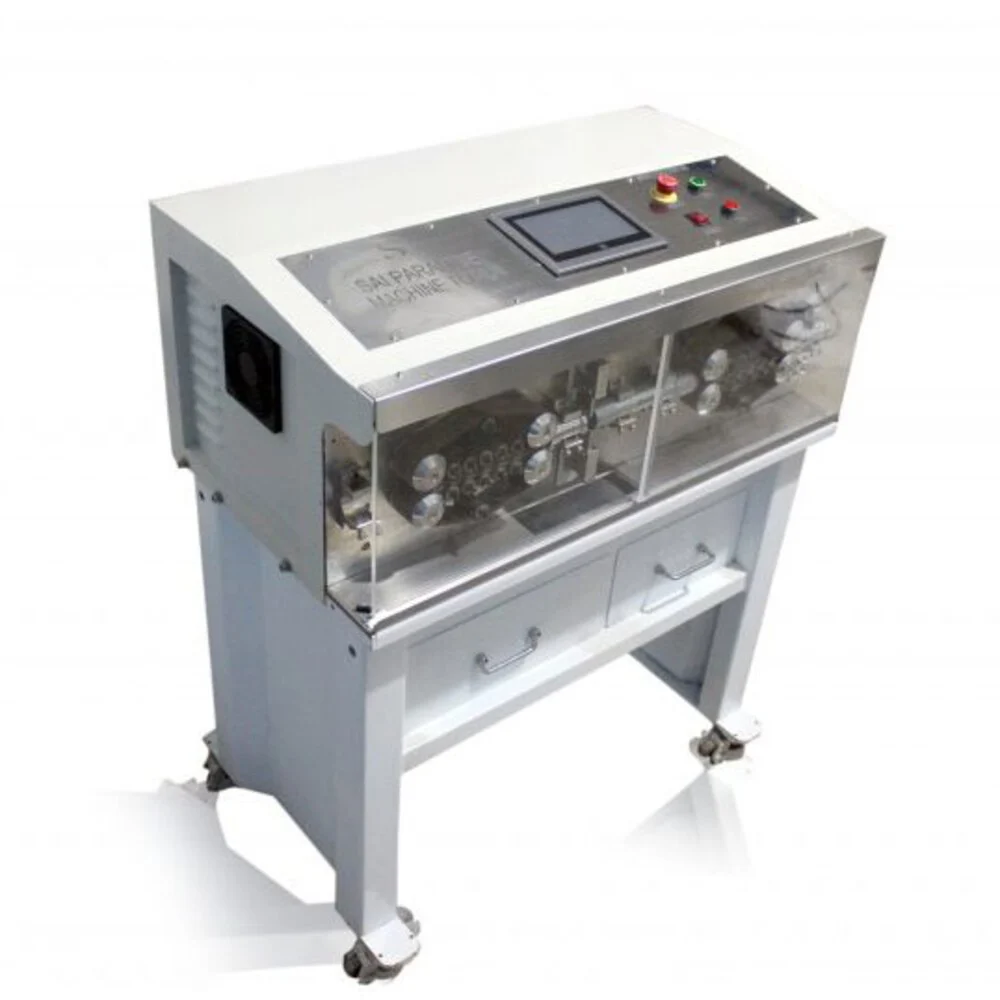

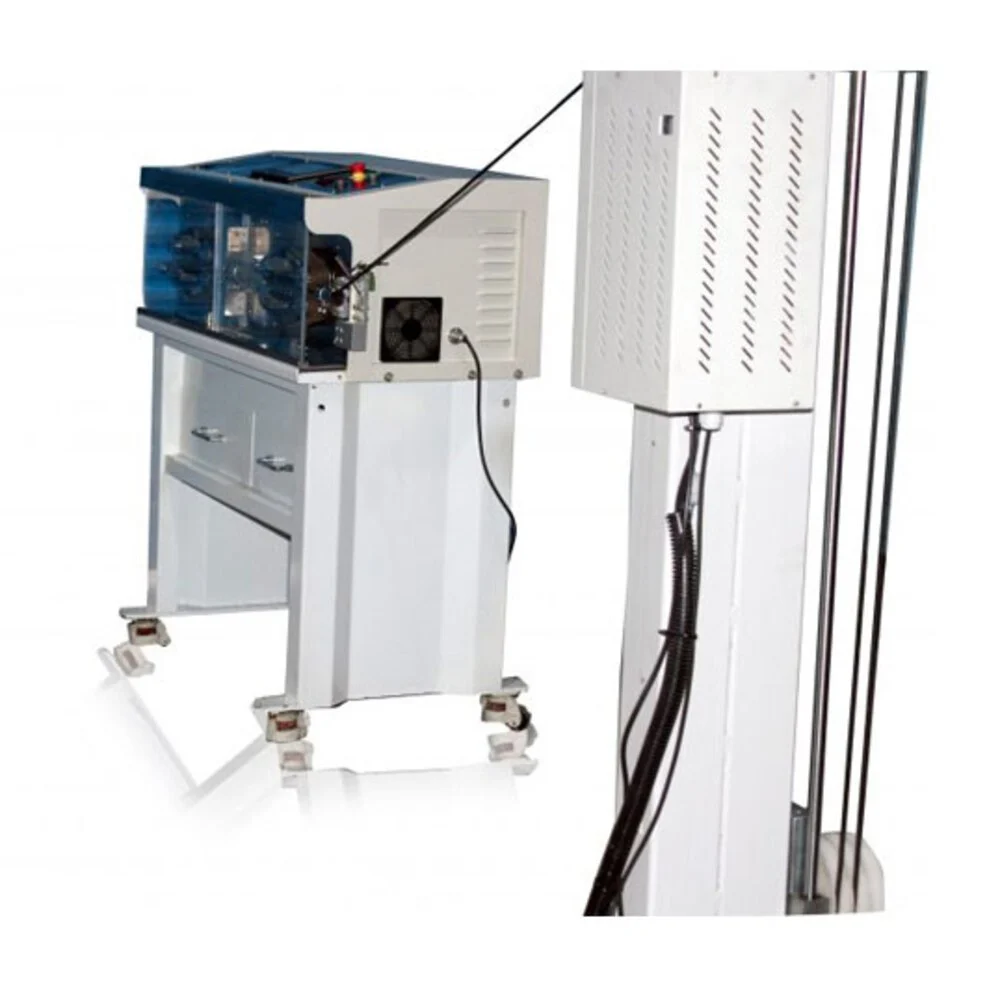

The powerful Eco-Strip-999 processes round cables upto 4 mm – 50 mm outer dia. It has a powerful cutting and transport drives for higher production rates. This machine can process 4 wires at a time, hence improves productivity. This Eco strip-999 is designed in PLC based with hybrid stepper motors and HMI (Touch Screen).
FEATURES:
• Quick change guide tubes and blades.
• Simple operation of HMI (Touch Screen).
• User-friendly operation.
• Quick programming.
TECHNICAL DETAILS:
| Operating interphase | HMI (Touch Screen) |
| Wire Type | Pvc,PE,Silicon and other plastic wires and multi core cables. |
| Minimum cable size | 4.0 sqmm |
| Maximum cable size | 50.0 mm |
| Cable Outer Dia | 4.0 – 18.0 mm |
| Lead Stripping Length | 80 mm |
| Tail Stripping Length | 50 mm |
| Length Accuracy: | ±0.1MM ( L x 0.02%) Depends on the materials |
| Noise Level: | < 70 db |
| Program memory capacity: | Upto 99 no’s with all processing parameters |
| Power Supply: | 230 to 240V (50/60 Hz) |
| Motor | 1.6 Kw |
| Air supply | 4.0-6.0 bar Dried and filtered air |
| Dimensions (L x W x H): | 550 x 520 x 370 mm |
| Net Weight: | 85 kgs |
