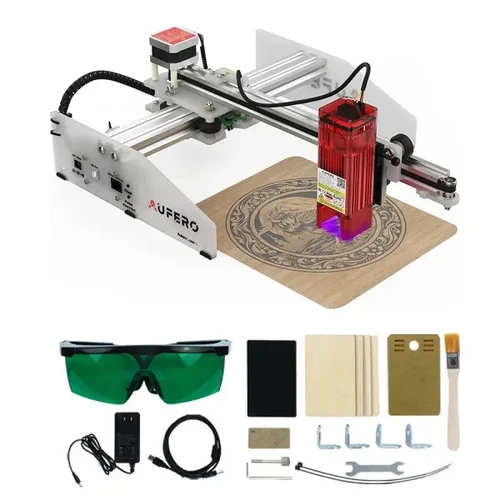

Diode Aluminum Profile+Acrylic Aufero Lu2-4 Sf Laser Engraving Machine
incl. GST
Specifications :
Aufero Laser 1
| Motherboard | OLM-PRO-V1.2 Motherboard, 32Bits ESP32MCU |
| Firmware | OLF-V180 seris Firmware |
| Safety Precautions | 1. Active Position Protection2. Exposure Duration Detection and Limitation3. Laser Beam Safety Guard4. 24V Power Delivery System5. Power control system, if shutdown the machine, it would cut the power |
| Add-ons | 1. Ortur Control Box (Offline Controller)2. Adjustable Z-axis Lifting Device3. YRR 2.0 Rotary Roller |
| Frame Materials | Aluminum profile+Acrylic |
| Motors | NEMA 17 Stepper Motors |
| Mechanical Precision | Y:12.5um X:12.5um |
| Pixel Accuracy | Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy) |

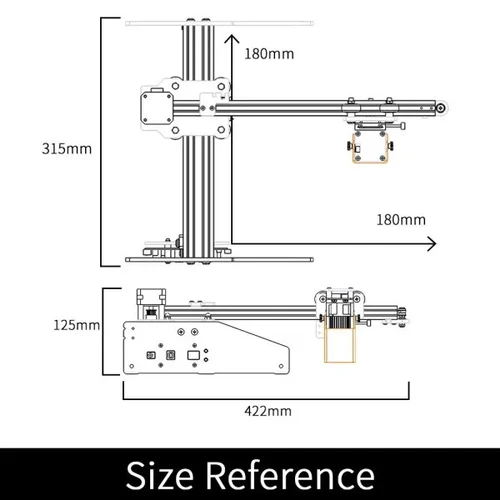

| Engraving Area | 180mm*180mm |
| Available Laser Modules | LU2-2 (2nd Generation FAC , Luminous Power: 1,000-1,600mw)LU2-4 SF Short Focus (2nd Generation FAC , Luminous Power: 4,500-5,000mw)LU2-4 LF Long Focus (2nd Generation FAC , Luminous Power: 4,500-5,000mw) |
| Wave Length | 445±5nm |
| Focus | Fixed Focus |
| Default Focal Length | SF: 50mm (from the heat sink to the object) |
| Control Mode | PWM |
| Power Rate | S0-S1,000 |
| Engraving Speed | 0-5,000MM/Min |
| Baud Rate | 115200 – 921600 (Default: 115200) |
| Computer OS | Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn) |
| Control Softwares | LaserGRBL (free), LightBurn (Paid Software) |
| Input Format | JPG, JPEG, PNG, BMP, SVG, etc. |
| Available Materials of Engraving | Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Power Coated Metal, etc. |
| Available Materials of Cutting | Wood Board, Paperboard, Black Acrylic, Leather, Felt Cloth, Dark Color Plastic Sheet (Melt), etc. |
| Input Voltage | 110V-220V (Compatible) |
| Power Adapter Output | 24V/2A |
| Operating Temp. | -20 50 |
Aufero laser 1 Installation & Use Video
