  4. Digital SPECIAL STEEL Electronic LVDT Probe, Packaging Type: Box, Model Name/Number: H10

Digital SPECIAL STEEL Electronic LVDT Probe, Packaging Type: Box, Model Name/Number: H10

incl. GST

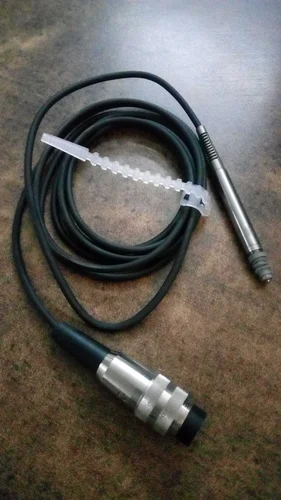

We are offering Electronic LVDT Probe to our client.

Other Details:

  • All new product - The Inductive electronic Probe to gauge to better than 0.001mm
  • With Swiss precision miniature linear caged ball bearings to give smooth and accurate measurement over a long period.
  • Hardened and ground stainless steel body with 8h6 diameter giving excellent holding possibility.
  • 0.6N measuring force.
  • Sensitivity. TESA compatible (73.75mV/V/mm)
  • With pre-travel adjustment.
  • Measuring ranges +/- 1mm and +/- 2mm
  • Linearity +/- 0.3% up to +/- 1mm
  • With Pre-travel adjustment.
  • 2m long shielded Polyurethane cable, with standard 5 pin DIN connector
  • With Tungsten carbide ball anvil. Other anvils on request

Feature
Material SPECIAL STEEL
Model Name/Number H10
Usage/Application Industrial
Type Of Testing Machines MEASUREMENT
Packaging Type Box
Display Type Digital
Load Capacity NA
Model LVDT 01
Grade Automatic
Application Industrial
Minimum Order Quantity 1 Number
Description



We are offering Electronic LVDT Probe to our client.

Other Details:

  • All new product - The Inductive electronic Probe to gauge to better than 0.001mm
  • With Swiss precision miniature linear caged ball bearings to give smooth and accurate measurement over a long period.
  • Hardened and ground stainless steel body with 8h6 diameter giving excellent holding possibility.
  • 0.6N measuring force.
  • Sensitivity. TESA compatible (73.75mV/V/mm)
  • With pre-travel adjustment.
  • Measuring ranges +/- 1mm and +/- 2mm
  • Linearity +/- 0.3% up to +/- 1mm
  • With Pre-travel adjustment.
  • 2m long shielded Polyurethane cable, with standard 5 pin DIN connector
  • With Tungsten carbide ball anvil. Other anvils on request
