Digital Mild Steel Ultrasonic Flaw Detector UT USB, For Laboratory, Packaging Type: Box
| Material | Mild Steel |
| Usage/Application | Laboratory |
| Type Of Testing Machines | Eddy Current Dynamometer |
| Packaging Type | Box |
| Display Type | Digital |
| Grade | Manual, Automatic |
Feature
| Material | Mild Steel |
| Usage/Application | Laboratory |
| Type Of Testing Machines | Eddy Current Dynamometer |
| Packaging Type | Box |
| Display Type | Digital |
| Grade | Manual, Automatic |
Description

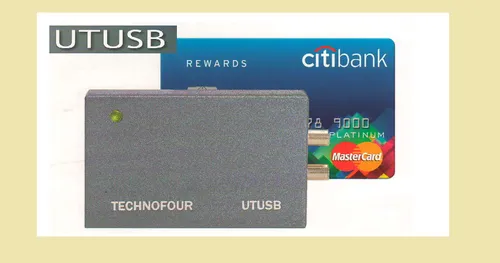

Techno four UTUSB quite literally puts NDT in your shirt pocket.This incredible credit-card sized feather-weight instrument interfaces with a Windows tablet or laptop via USB and offers a dazzling array of features.Its advanced bipolar square wave pulser maximizes the acoustic energy in the trigger pulse, resulting in as much as30dB gain advantage over conventional spike pulse instruments. Unique active damping enables inspection closer to surface than the usual passive damped instruments. Tone bursts up to eight cycles further improve testing in attenuating materials.A Probe Wizard sets up parameters for inspection quickly and accurately. It also computes beam divergence and near field distance for a probe. Then the Automatic calibration wizard simplifies adjustment of probe delay and sound velocity.Range, delay, gain and probe delay can be visually adjusted.Signal amplitudes can be accurately measured using tramline cursors on screen. Echo to echo measurements can bed one flank to flank or peak to peak as required. V-path correction is available for thickness measurements with dual element probes.DAC curve can be plotted visually. Two offset DAC curves are also available. Time compensated gain can be instantly enabled once a DAC curve is drawn. Peak Tracker turns onscreen persistence that keeps several signals on the screen.This facilitates setting up the DAC curve. The DAC curve or two linear gates can be used as thresholds for alarm.All A-scans can be recorded as snapshots or a movie and played back. Virtual B-Scans greatly simplify corrosion detection without the need of an encoder. Bipolar Square Pulser Active Damping Tone bursts Automatic or adjustable Pulse Repetition Rate External Trigger for single-shot Five selectable voltage levels Wide band amplifier Separate low pass and high pass filters 100dB Dynamic Range Selectable sampling rates up to 100MSPSl Time compensated gain with 50dB dynamic range Visual setup of DAC curves with adjustable off sets Visual setting of range, delay, gain etc. Peak Tracker for persistent display RF and rectified Full wave/Positive/Negative A-Scans Tram line cursor for accurate signal height readout V-path correction for dual element probes Peak-to-peak or Flank-to-flank echo measurement 10 micron measurement accuracy Probe wizard for easy setup Automatic calibration Auto-80 / Auto-xx gain adjustment Two reference A-scans can persist on screen Snapshot, timed shots or movie recording Virtual B-Scans with movie playback Two independent linear gates (+/-/float)l Freeze on alarm / Manual freeze USB powered with Windows® tablet/laptop
