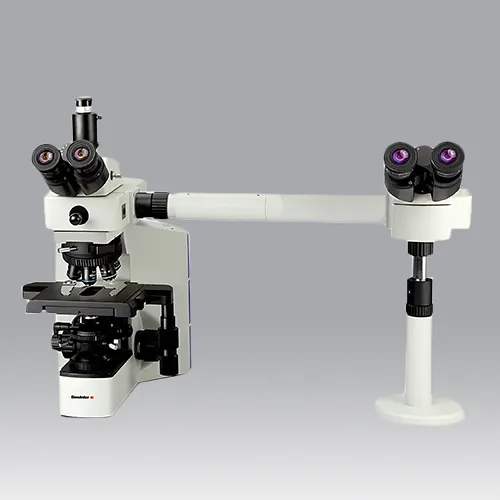

Dewinter Dual Head Teaching Microscope Model : Optima Dual, For Research
| Brand | Dewinter |
| Usage/Application | Research |
| Model Name/Number | Optima Dual |
| Stage Size | 187mm x 167mm |
| Inter-Pupillary Distance | 48mm to 75mm |
| Eyepiece | 10X (paired) 25-30 mm |
| Coarse Stroke | 37.7mm/Rotation |
| Moving Range | 24 mm |
Feature
| Brand | Dewinter |
| Usage/Application | Research |
| Model Name/Number | Optima Dual |
| Stage Size | 187mm x 167mm |
| Inter-Pupillary Distance | 48mm to 75mm |
| Eyepiece | 10X (paired) 25-30 mm |
| Coarse Stroke | 37.7mm/Rotation |
| Moving Range | 24 mm |
Description
Trinocular Observation Head
- Siedentopf observation head inclined at 30° rotatable at 360°.
- Vertical phototube for photomicrography.
- Diopter adjustment ring on ocular tube. (±5).
- Inter-pupillary distance from 48mm to 75mm.
- Binocular observation head inclined at 30°fixed on adjustable stand (one set)
Eyepiece (Anti fungus coated)
Extra wide field 10X (paired).F.O.V. 25mm.Ocular dia 30mm
Objectives (Infinite Corrected) Anti Mold & Anti fungus coated
- CCIS Plan Achromatic 2X
- CCIS Plan Achromatic 4X
- CCIS Plan Achromatic 10X
- CCIS Plan Achromatic 20X
- CCIS Plan Achromatic 40X(S.L.)
- CCIS Plan Achromatic 100X Oil(S.L.)
Mechanical Body
- Co-axial focusing control with large knob, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
- Reverse angle sextuple nosepiece revolving on ball bearings. Slot for Polarizer & DIC.
- Double plate reckless mechanical stage size 187mm x 167mm & having low positioned co-axial controls on ball bearing guide ways.
- Fine div 0.001mm, coarse stroke 37.7mm per rotation, Fine stroke 0.1mm/rotation .Moving range 24mm.
Illumination System
Kohler illumination system with 12V/100W Halogen Bulb /3W LED external illuminator. Iris diaphragm on collector lens. Aspherical collectors. Brightness control knob.
Standard Accessories
12V/100W Halogen Bulb /3W LED bulb, dust cover, guarantees card, blue filter, Operating manual and Styrofoam molded pack.
Color LED Pointer
Dual Color LED Pointer Brightness adjustable.
Sub Stage Condenser
Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.
