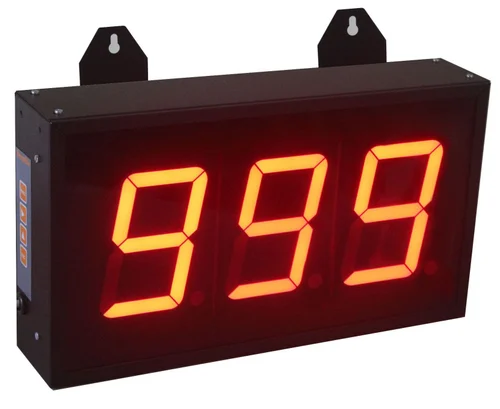

Deep Electronics Wall Mounted Jumbo Display Process Indicator, 90-250 Vac, Model Name/Number: LDI-1

7000 incl. GST

A digital process indicator is an electronic device used to display and monitor process variables in various industries. It is a type of measuring instrument that provides a digital readout of the process variable being measured, such as temperature, pressure, flow rate, or level.

Digital process indicators are typically designed with a user-friendly interface, which allows users to program and configure the instrument to meet their specific needs. They can be used to monitor and control a wide range of processes in industrial applications, including manufacturing, chemical processing, food and beverage production, and many others.

Some of the features commonly found in digital process indicators include alarm functions, data logging capabilities, and communication interfaces, which enable the instrument to communicate with other devices in a process control system.

Overall, digital process indicators provide an accurate, reliable, and efficient means of monitoring and controlling process variables in a wide range of industrial applications.We are offering Digital Process Indicator to our client.

Feature
Model Name/Number LDI-1
Brand Deep Electronics
Display Range 000 to 999 With High Scale and Low Scale Setting
Supply 90-250 VAC
Mounting Type Wall Mounted
Display Type 7 Segment High Bright Green And Red Display
Accuracy +/- 1 Count
Power Supply 90-250 VAC
Range 000 to 999
Color Black
Weight 4 kg
Calibration Inhouse
Shape Rectangle
Input Voltage 90-250 VAC
Material MS Powdered Coated
Analog Output Optional (4-20)mA Retransmission output
Digit Indicator 3 Digit
Size 330mm X 185mm X 70mm (W X H X D) Approx
Output Modbus Optional RS 485 MODBUS RTU For Communication
Country of Origin Made in India
Minimum Order Quantity 1 Piece
Description

A digital process indicator is an electronic device used to display and monitor process variables in various industries. It is a type of measuring instrument that provides a digital readout of the process variable being measured, such as temperature, pressure, flow rate, or level.

Digital process indicators are typically designed with a user-friendly interface, which allows users to program and configure the instrument to meet their specific needs. They can be used to monitor and control a wide range of processes in industrial applications, including manufacturing, chemical processing, food and beverage production, and many others.

Some of the features commonly found in digital process indicators include alarm functions, data logging capabilities, and communication interfaces, which enable the instrument to communicate with other devices in a process control system.

Overall, digital process indicators provide an accurate, reliable, and efficient means of monitoring and controlling process variables in a wide range of industrial applications.We are offering Digital Process Indicator to our client.
