Data Loggers with USB Memory Uniscan-USB in pune
Display | 4-digits for temperature, 4-digits for channel, alarm status |
No. Of Channels | Dual Channel |
Power Supply | 100-265 VAC, 50 Hz or 24V DC |
Memory | USB Memory based data logging and retrieval |
Warranty | 1 Year |
Features | thermocouples |
Accuracy | 0.25% FS, +/- 1 digit. |
Temperature Range | 0-400 DegreeC, Pt-100 RTD input default configuration |
Positioning Data Setting Mode | Hi-Vhi/Lo-VLo programmable for each channel , setpoint on-off differential can be set by us |
Enclosure | ABS, IP 40 protection, bezel size 96 x 192, depth 125mm |
Frequency | 50Hz |
Voltage | 24V |
Channel | 16, 24 and 32-channel versions |
Sensor | LEDs for A/M mode status & sensor fault |
Ip Rating | As per requirement |
Calibration | from keyboard - no potentiometer adjustments required |
Lcd Operating Range | 50 DegreeC and 90% RH non-condensing, maximum |
Country of Origin | Made in India |
Feature
Display | 4-digits for temperature, 4-digits for channel, alarm status |
No. Of Channels | Dual Channel |
Power Supply | 100-265 VAC, 50 Hz or 24V DC |
Memory | USB Memory based data logging and retrieval |
Warranty | 1 Year |
Features | thermocouples |
Accuracy | 0.25% FS, +/- 1 digit. |
Temperature Range | 0-400 DegreeC, Pt-100 RTD input default configuration |
Positioning Data Setting Mode | Hi-Vhi/Lo-VLo programmable for each channel , setpoint on-off differential can be set by us |
Enclosure | ABS, IP 40 protection, bezel size 96 x 192, depth 125mm |
Frequency | 50Hz |
Voltage | 24V |
Channel | 16, 24 and 32-channel versions |
Sensor | LEDs for A/M mode status & sensor fault |
Ip Rating | As per requirement |
Calibration | from keyboard - no potentiometer adjustments required |
Lcd Operating Range | 50 DegreeC and 90% RH non-condensing, maximum |
Country of Origin | Made in India |
Description

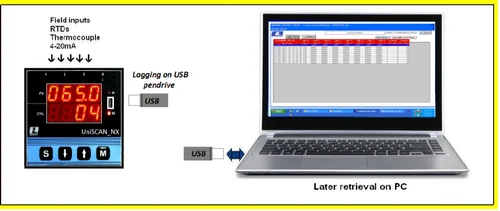

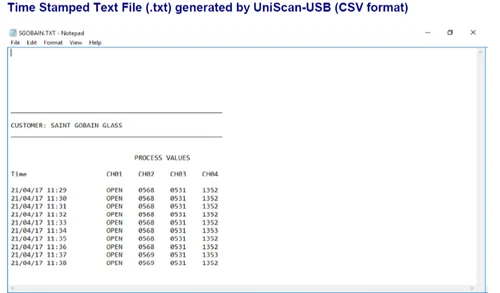

Data logging into USB storage device is useful for logging readings at remote sites or offline applications on devices not connected to computer systems. Users can access later by the data stored on the memory USB stick onto a PC or laptop. The data is stored as CSV (comma separated values) with Time Stamp, and can be converted to a spread-sheet like MS-EXCEL for further reports, tend-curves, mean/deviation/minimum/maximum value analysis etc.
